Description

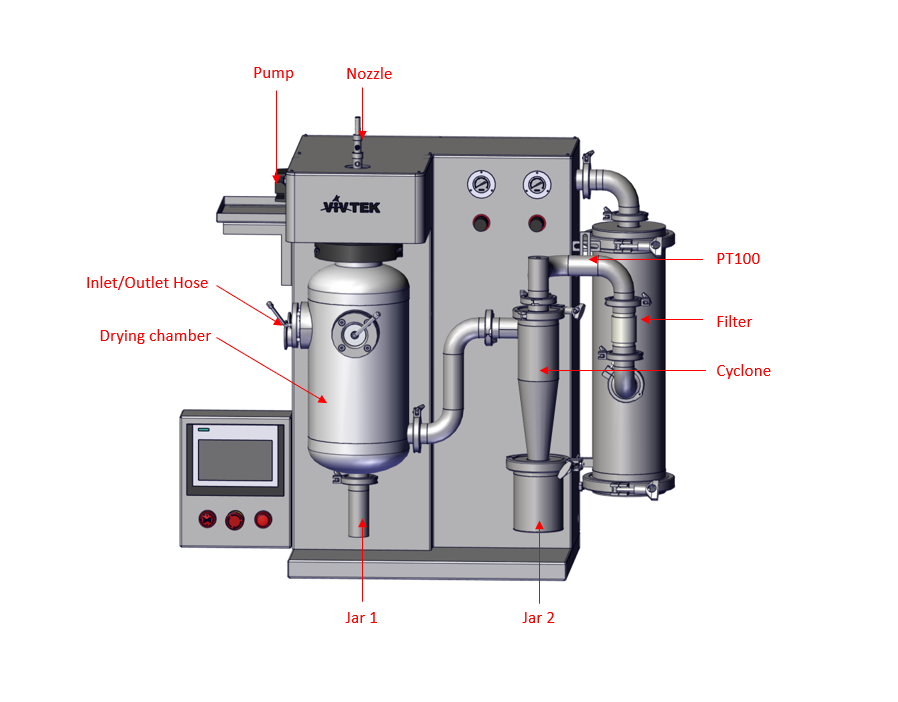

Parts for lab spray dryer LSD-H1500 Model:
| Part Description | Part SKU # | Details |
| Glass drying chamber | LSD-H1500-GDC12 | D12inch, H16inch, glass |
| Glass cyclone | LSD-H1500-GC4 | D4inch, L16inch, glass |
| Glass collection jar 1 | LSD-H1500-GJAR1 | D3inch, H6inch, glass |
| Glass collection jar 2 | LSD-H1500-GJAR2 | D5inch, H7inch, glass |
| Whole glass set | LSD-H1500-GLASS | A complete set of glassware |
| S316 drying chamber | LSD-H1500-SDC12 | D12inch, H16inch, S316L |
| S316 cyclone | LSD-H1500-SC4 | D4inch, L16inch, S316L |
| S316 collection jar 1 | LSD-H1500-SJAR1 | D3inch, H6inch, S316L |
| S316 collection jar 2 | LSD-H1500-SJAR2 | D5inch, H7inch, S316L |
| S316 whole set | LSD-H1500-S316 | A complete set of S316L |
| Spray nozzle | LSD-H1500-JET | Two fluid jet nozzle |
| Nozzle Tip | LSD-H1500-NT | Nozzle tip 0.7/1.0/1.5/2.0mm |
| Heating module | LSD-H1500-HEATER | 3KW heating module |
| Air filter | LSD-H1500-AIRFITER | Air filter for exhaust |
| Inlet or outlet hose | LSD-H1500-HOSE | HiTemp hose for in/out gas |
| Air compressor | LSD-H1500-ACBOX | Air compressor set in a box |
| Temperature probe | LSD-H1500-RTD100 | RTD-PT100 sensor |
| Air blower/fan | LSD-H1500-FAN | 0.5HP Fan AC230V 3P |
| Clamp | LSD-H1500-CLAMP | Clamp for connection |
| Feeding Pump | LSD-H1500-PUMP | Peristaltic pump assembly |
| Glass window wiper | LSD-H1500-GWW | 4 inch glass with wiper |
