Description

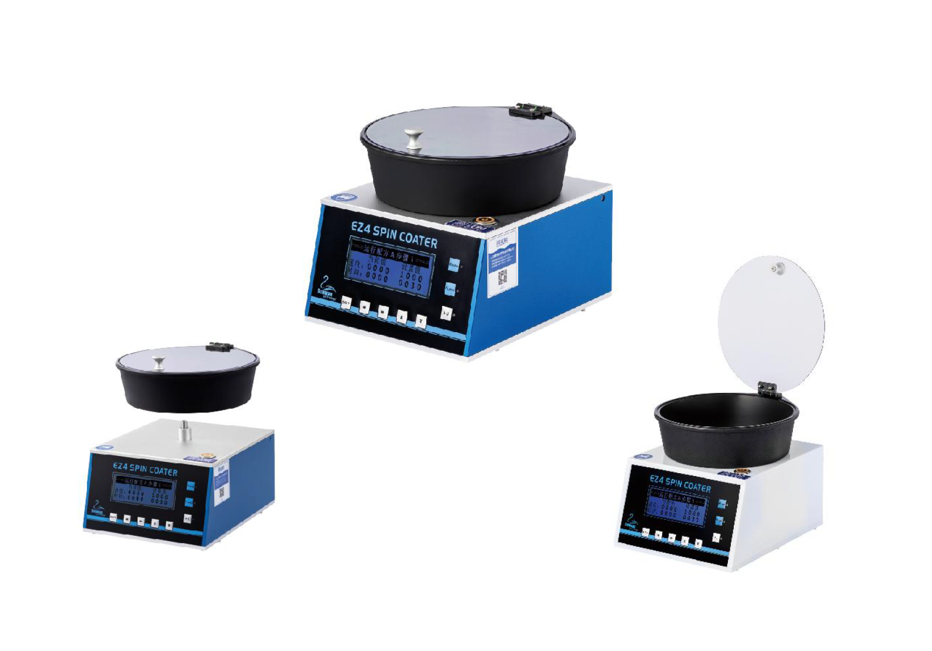

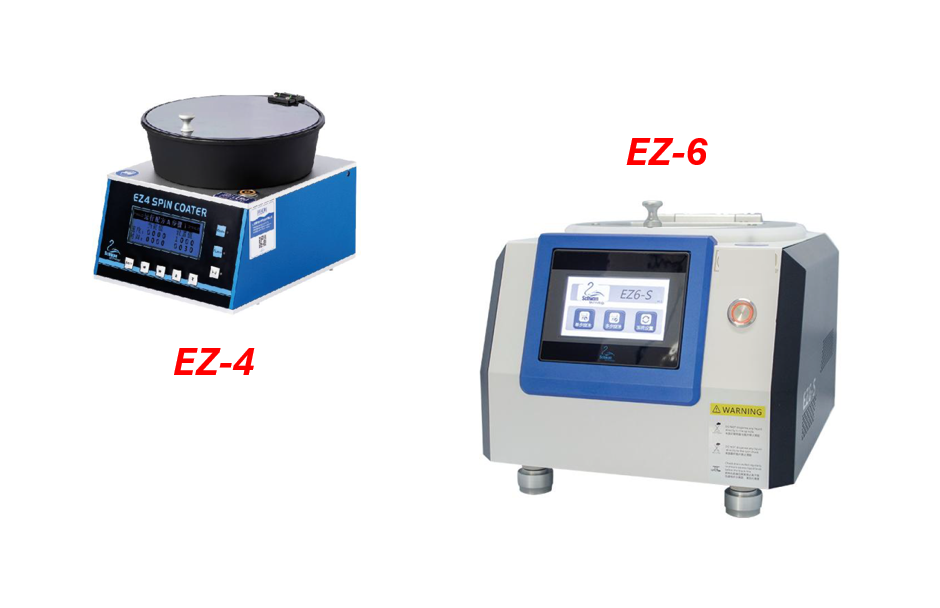

EZ-4 Mini Spin Coater
Laboratory spin coating equipment
Compact designing, fit into glove box
High speed BLDC with accurate speed control
Detachable working round chamber for easy cleaning
Large LED display
Working stage 10/25/50/75mm (vacuum suck)
Speed 100-9999 RPM, +/-1RPM
Programmable coating process, up to 5 steps
Each step up to 3000 seconds
Vacuum pump included
Overall size 210x265x215mm, weight 10kg/22lbs
Power voltage AC100-240V
EZ-6 Spin Coater
Laboratory spin coating equipment
Industrial standard micro-processor control
High speed BLDC with accurate speed control
High-precision dosing/feeding
4.3-inch HMI interface
Working stage 10/25/50/75mm (vacuum suck)
Speed 100-12000 RPM, +/-1RPM
Programmable coating process, up to 10 steps
Each step up to 3000 seconds, +/-0.1S
Vacuum pump included
Overall size 295x365x270mm, weight 20kg/45lbs
Power voltage AC115V or 230V
CAUTION: delivery time 3-4 weeks
