Description
High quality borosilicate glass G1.7
Stainless steel frame system with easy use clamps

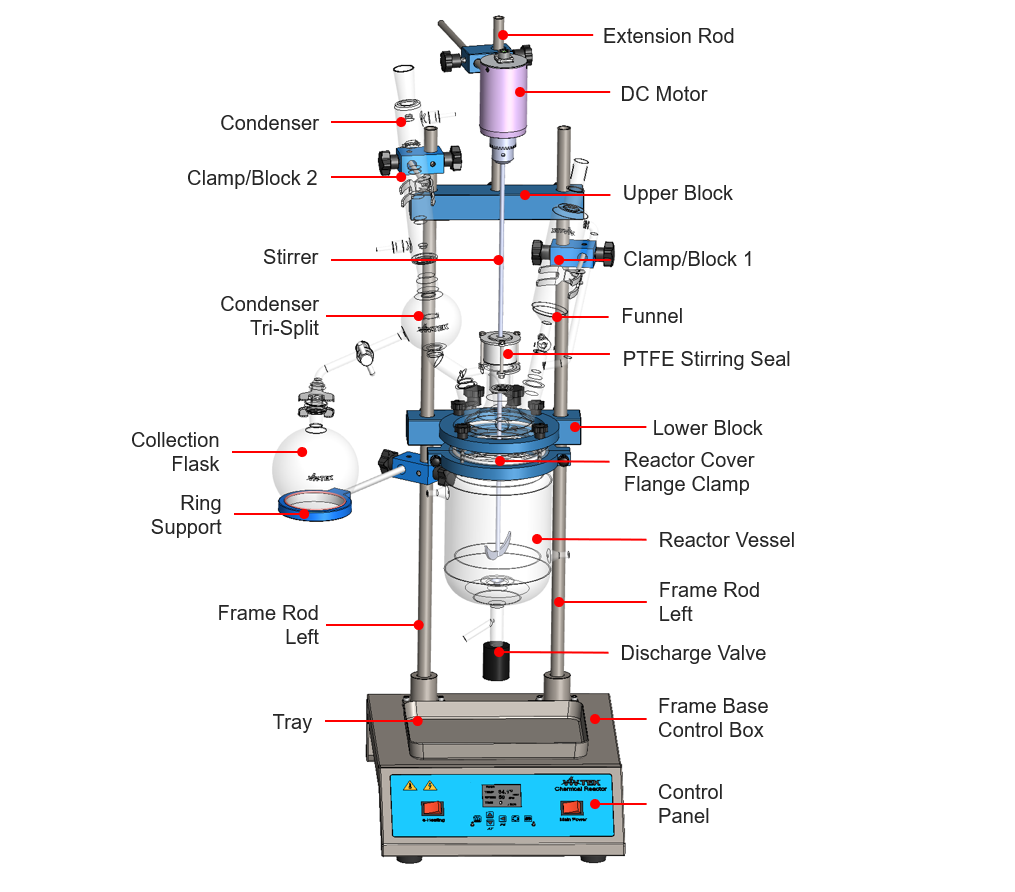

Multiple ports on reactor vessel cover for stirring/condenser/temperature probe/feeding

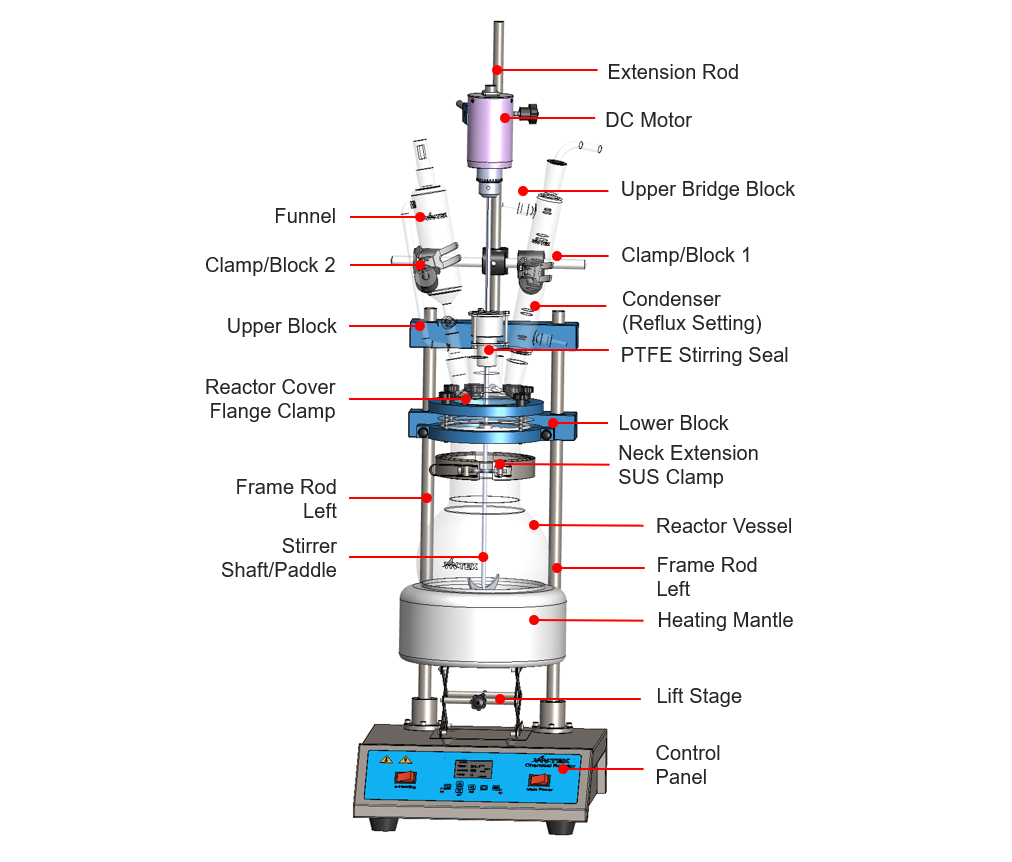

Water/oil bath heating or mantle heating to choose for single wall vessels (##GS model)
External circulation for temperature control for double-wall jacketed vessels (not included)
Applications: chemical synthesis and processing at lab scale
Stirring Speed: <1200RPM

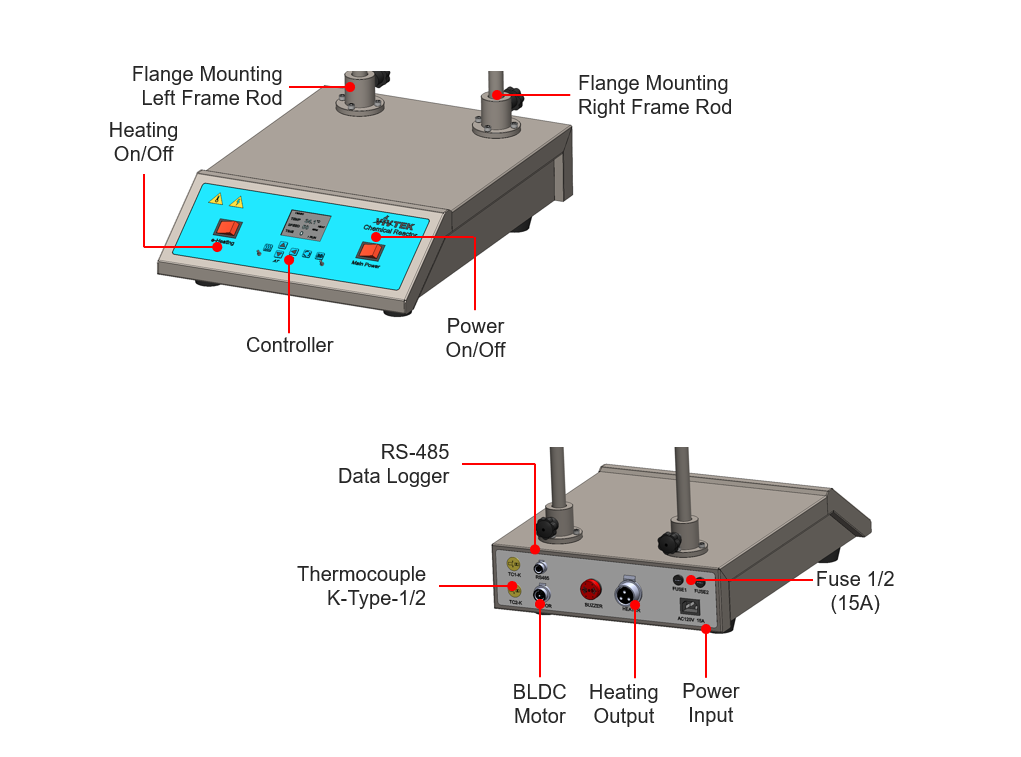

BLDC 24V 50W for more power and high torque at low speed range
Stirring paddles or impeller available or as requested
Full glass sets with turn-key solution
| Model | Volume |
Heater | Dimensions | Voltage |
| CR-50T-10GS |
1.0L | 500W | 40x35x100cm | AC115/230V |
| CR-50T-20GS |
2.0L | 500W | 40x35x100cm | AC115/230V |
| CR-50T-30GS |
3.0L | 900W | 40x35x120cm | AC115/230V |
| CR-50T-50GS | 5.0L | 1200W | 40x35x120cm | AC115/230V |
| CR-50T-05GD | 0.5L | N/A | 40x35x100cm | AC115/230V |
| CR-50T-10GD | 1.0L | N/A | 40x35x100cm | AC115/230V |
| CR-50T-20GD | 2.0L | N/A | 40x35x120cm | AC115/230V |
| CR-50T-30GD | 3.0L | N/A | 40x35x120cm | AC115/230V |
| CR-50T-50GD | 5.0L | N/A | 40x35x120cm | AC115/230V |
