Description

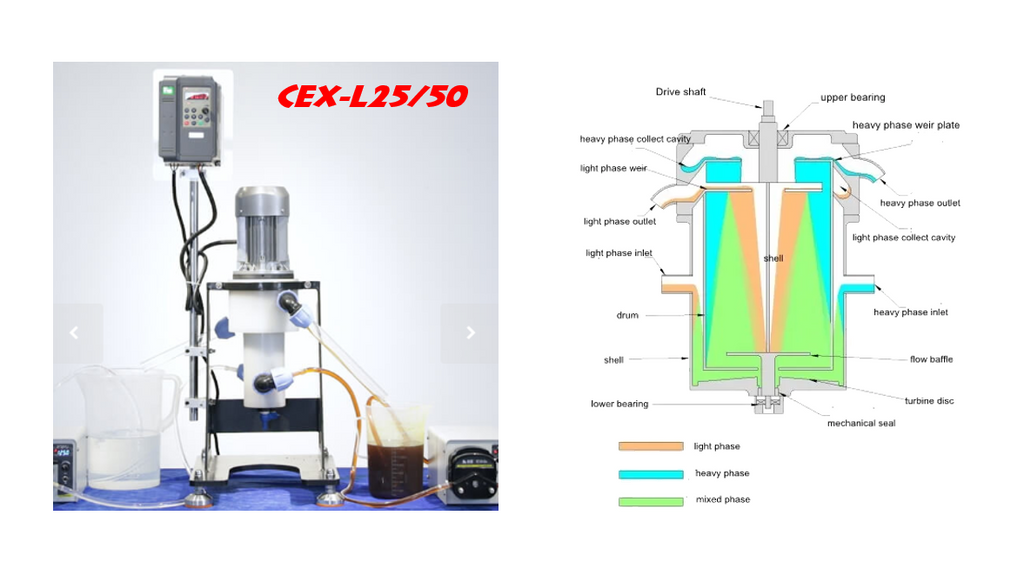

A centrifugal extractor separates two immiscible liquid phases, such as an organic solvent and an aqueous solution, by combining intense mixing with centrifugal separation in a rotating chamber. The two liquids enter the rotor and are rapidly dispersed into fine droplets, creating a large interfacial area for fast mass transfer of the target solute. As the mixture moves outward under centrifugal force, the phases separate according to density: the heavier phase migrates toward the outer wall, while the lighter phase remains closer to the rotor axis. Internal weirs or phase outlets then direct each liquid into separate discharge streams. Because mixing and separation occur continuously in the same compact unit, centrifugal extractors provide high throughput, short residence time, low solvent inventory, and efficient liquid-liquid extraction.
Applications in critical mineral extraction, battery recycling and pharmaceuticals fabrication.

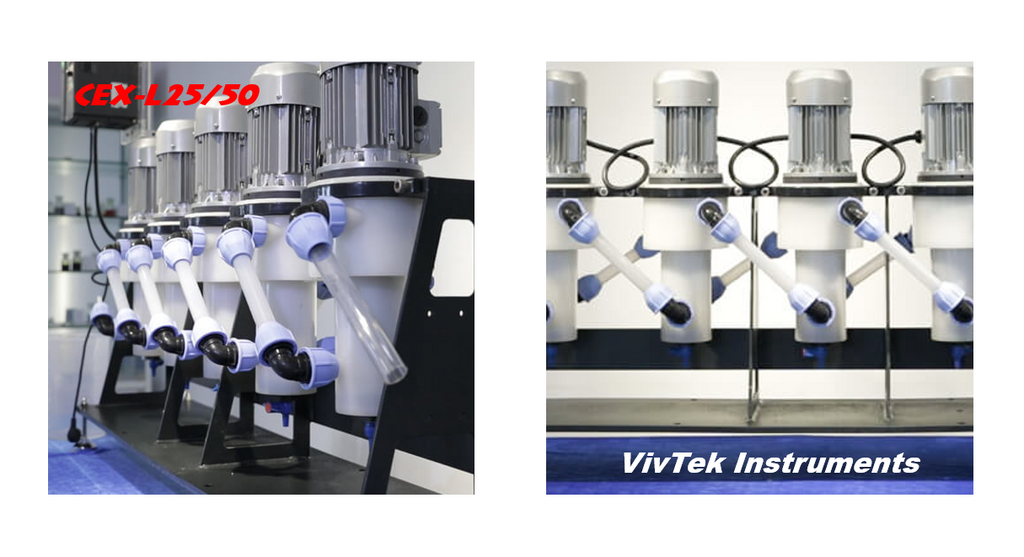

Technical Parameters (CEX-L25/50):
Rotation disc/bowl: 25mm / 50mm
Rotation speed in RPM: 1500-7500
Processing capacity in L/Hour: 10 / 50
In/Out pipe connectors: DN10 / DN20
Discharge port connector: D8mm
Phase ratio: 1:30~30:1
Motor: 120W / 200W

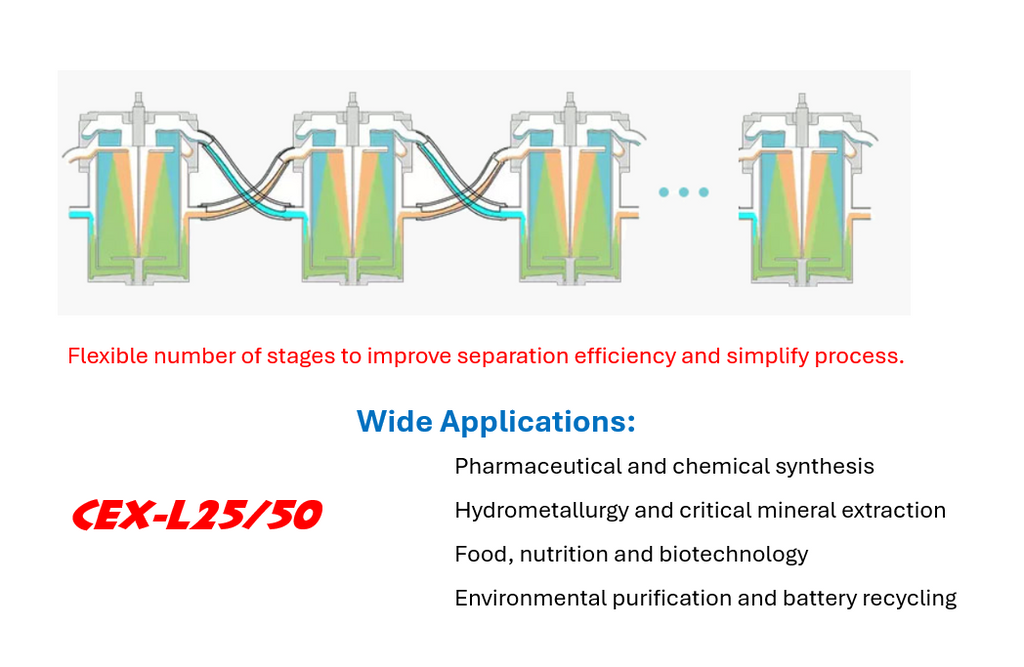

Number of stages: Flexible, 1/3/5/8/12
Control system: Siemens 7/10 inch HMI with Delta VFD
Process programmable: Yes (customizable)
Data logging and saving to USB export
Remote access through EasyAccess 2.0 (wifi or local internet)
Materials: PTFE or S316L, S304 for structure and case
One year standard manufacturer warranty and supports
All UL certified parts, optional to get NRTL UL61010 certified.
