Description

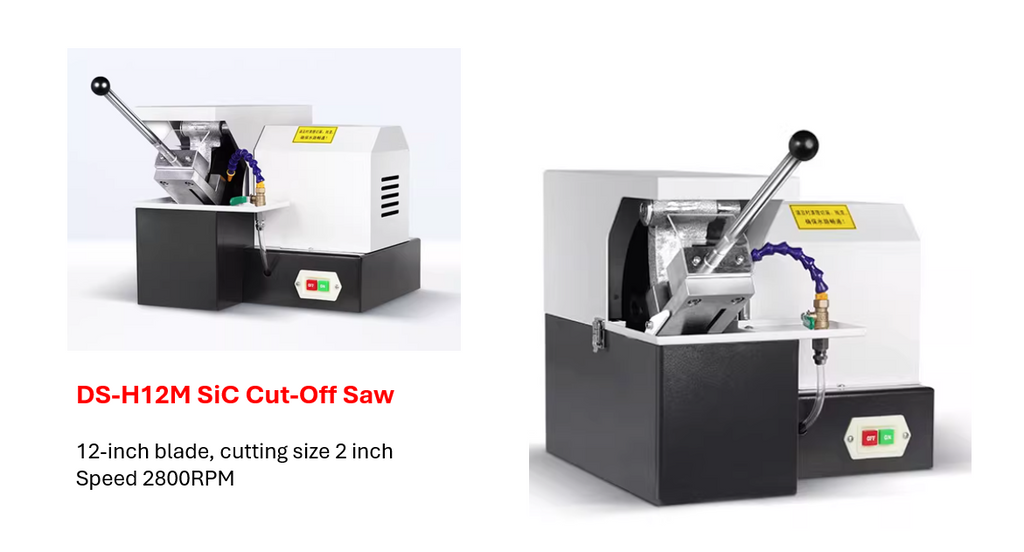

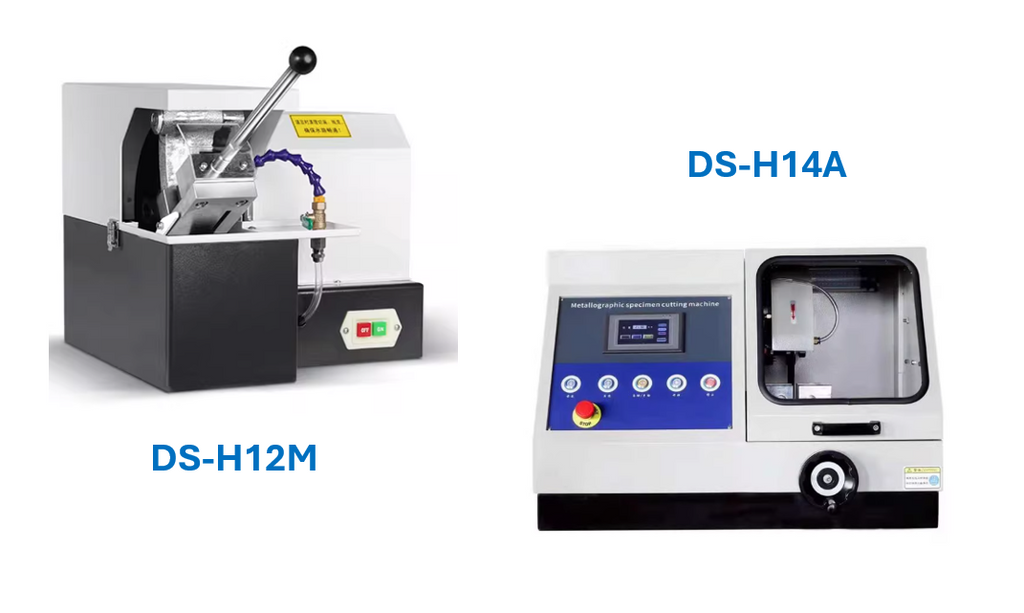

DS-H12M Manual 12-inch Cut-off Saw
Manual operation cut-off saw
12 inch cutting blades (D300mm, arbor size 32mm)
AC motor 2.2KW 2800RPM
Sample feeding device with handle, manual operation
Cutting capacity 50mm/2.0inch
Built-in cooling liquid tank and pump circulation
Overall size 600x560x450mm, weight 75kg/165lbs
Power voltage AC230V 15A

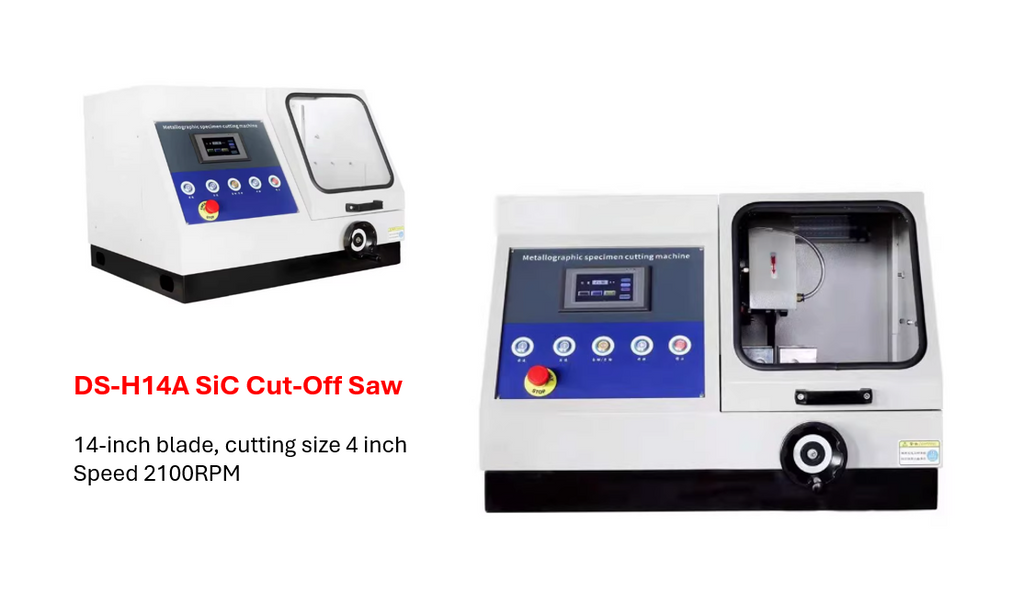

DS-H14A Automatic 14-inch Cut-off Saw
Full automatic circular cut-off saw
Cutting blade 14inch (D350mm, arbor size 32mm)
Automatic sample stage 280x310mm
Y axis control with moving range 275mm/11inch (digital control and display)
Feeding modes: auto or manual (speed 0.1-0.25mm/Second)
Feeding distance setting and auto position reset
AC motor 3KW speed 500-2800RPM
Automatic cutting mode for metal or ceramic samples
Cutting capacity 100mm/4.0inch
Built-in cooling liquid circulation for blade and sample protection
Overall size 850x850x600mm, weight 250kg/550lbs
Power voltage AC230V three-phase 20A

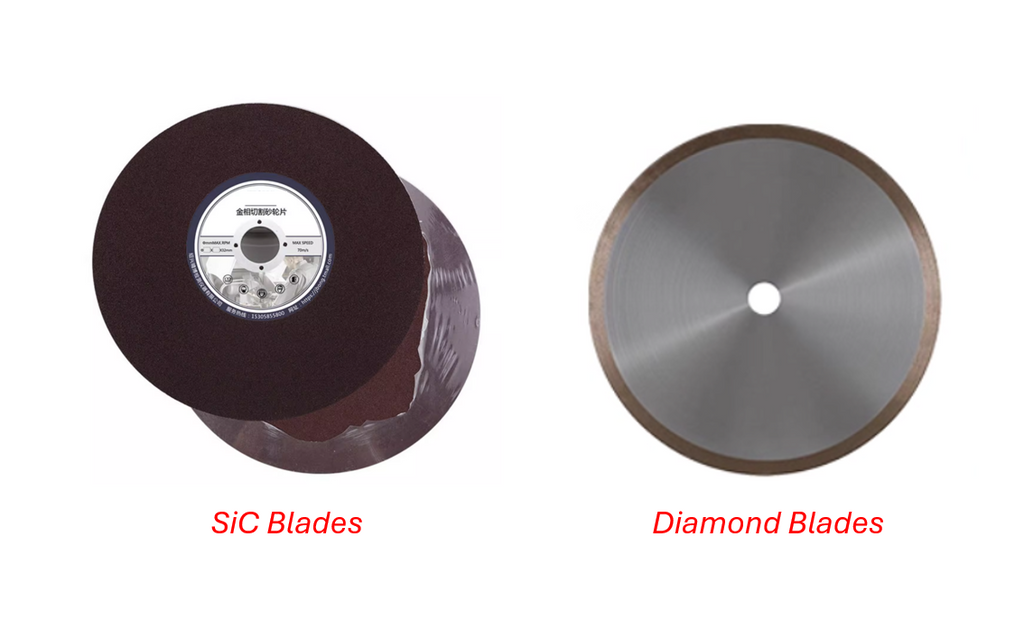

12-inch and 14-inch Cutting Blades
Materials SiC abrasive or diamond fusion
12-inch cutting blades (D300mm, arbor size 32mm)
14-inch cutting baldes (D350mm, arbor size 32mm)
SiC blades for on-ferrous metals and some ceramic materials
SiC blades are low cost, while diamond blades are more expensive
Diamond blades can work for both metal and non-metals (specified by the manufacturer)
CAUTION: delivery time 3-4 weeks
