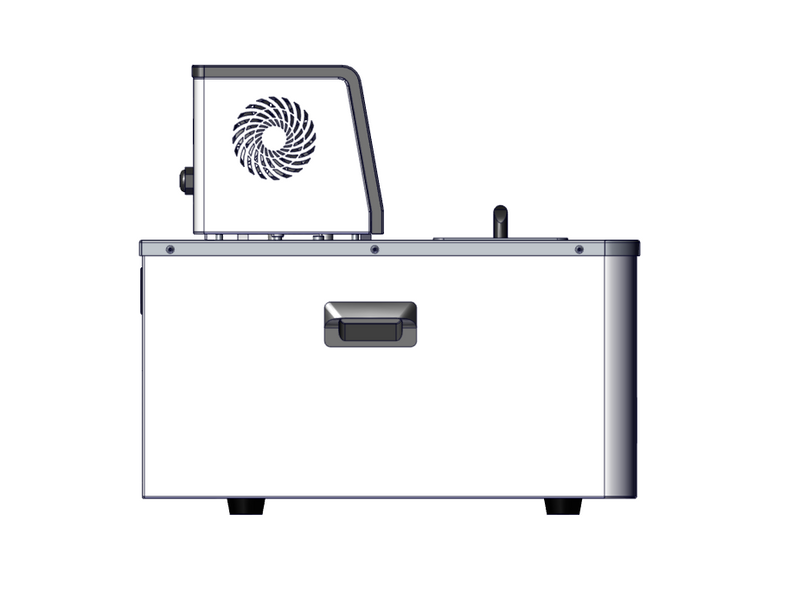

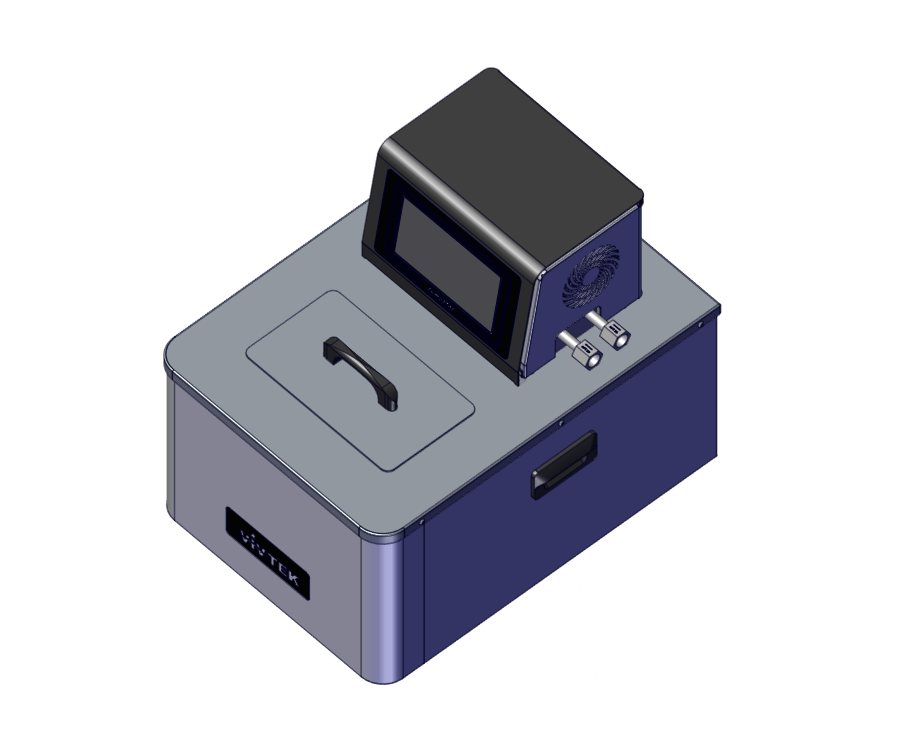

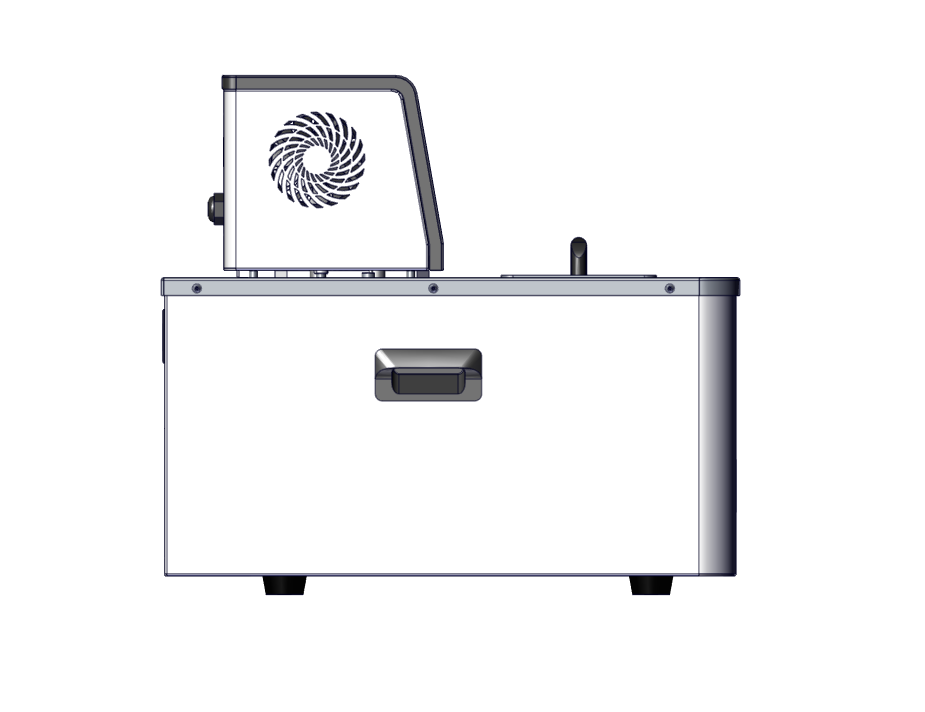

Heated Baths --- Circulator 200 ℃

VivTek InstrumentsSKU: LBC-H08-T200-115V-SH48D13

Model: LBC-H08-T200
Voltage: AC 115V

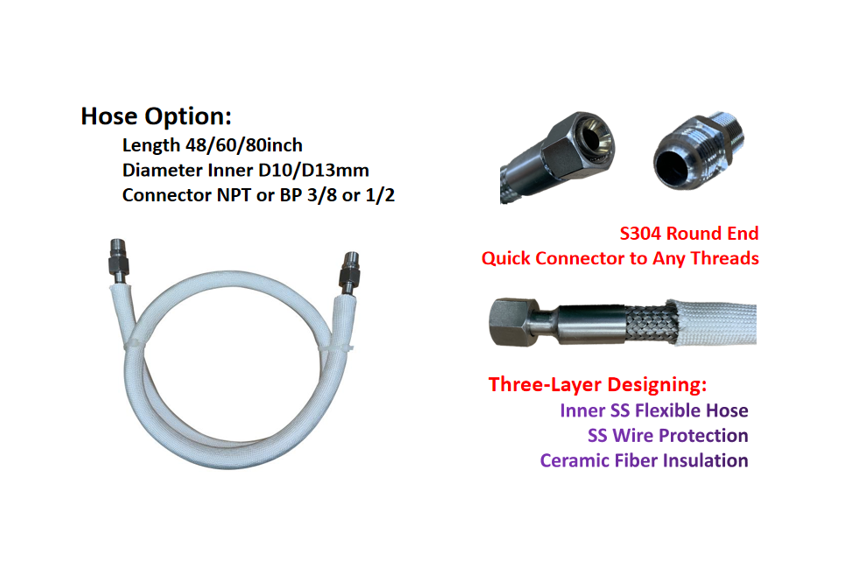

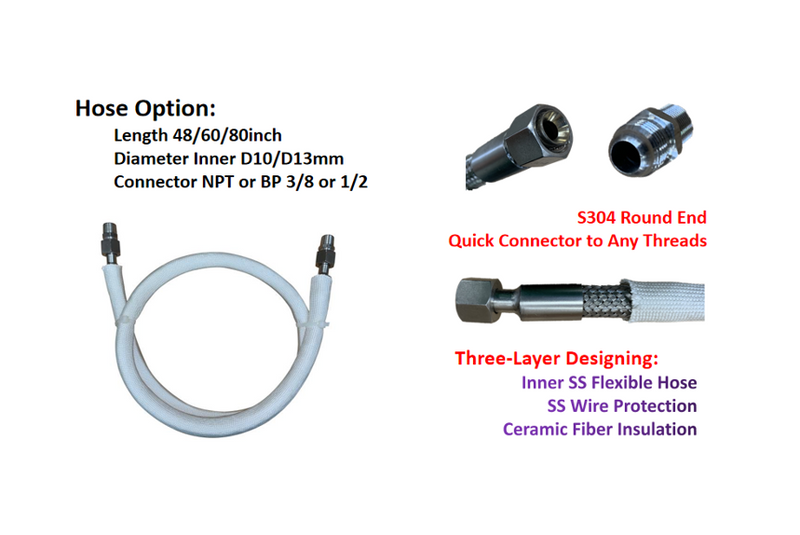

SUS Hose/Cooling Coils: SUS304 OD15/ID13 48Inch NPT3/8 Male
Price:
Sale price$1,450.00

Description

General heated water/oil bath and circulator
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff

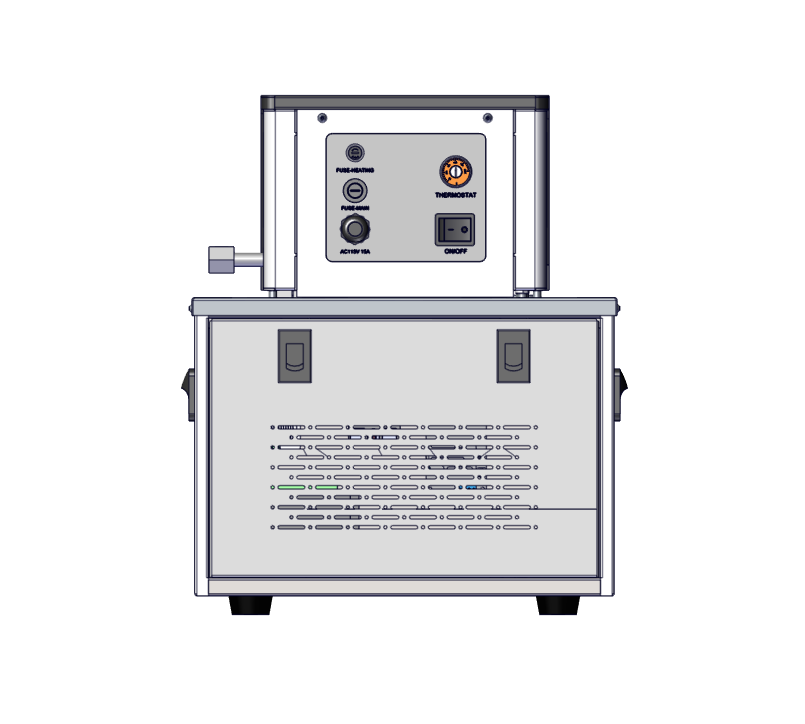

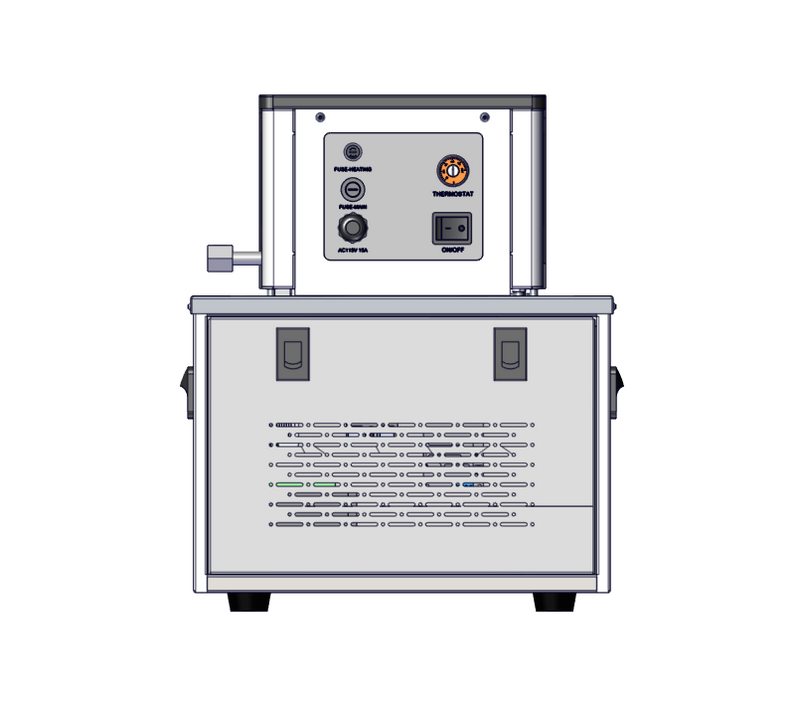

External thermostat for extra protection
Maximum temperature 200 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64
Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor

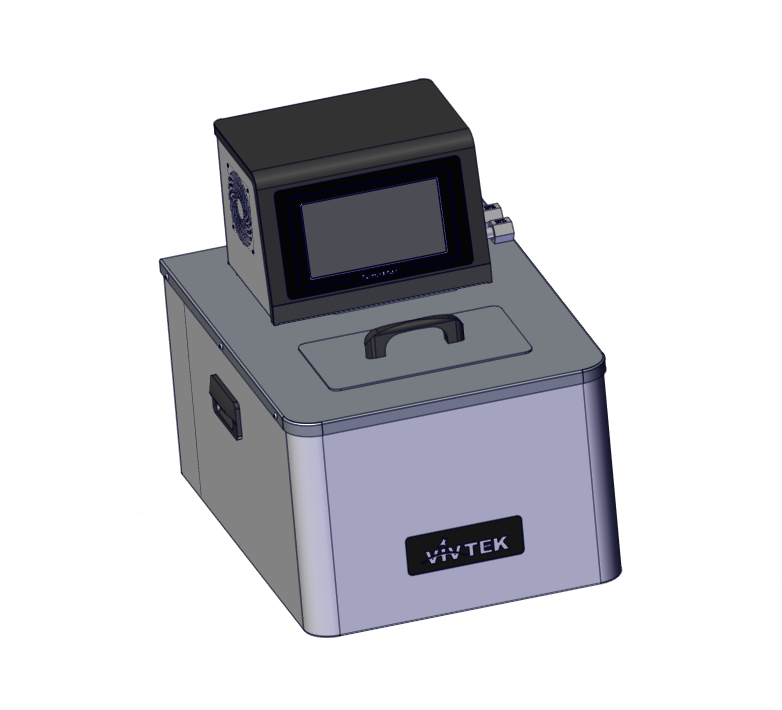

7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use

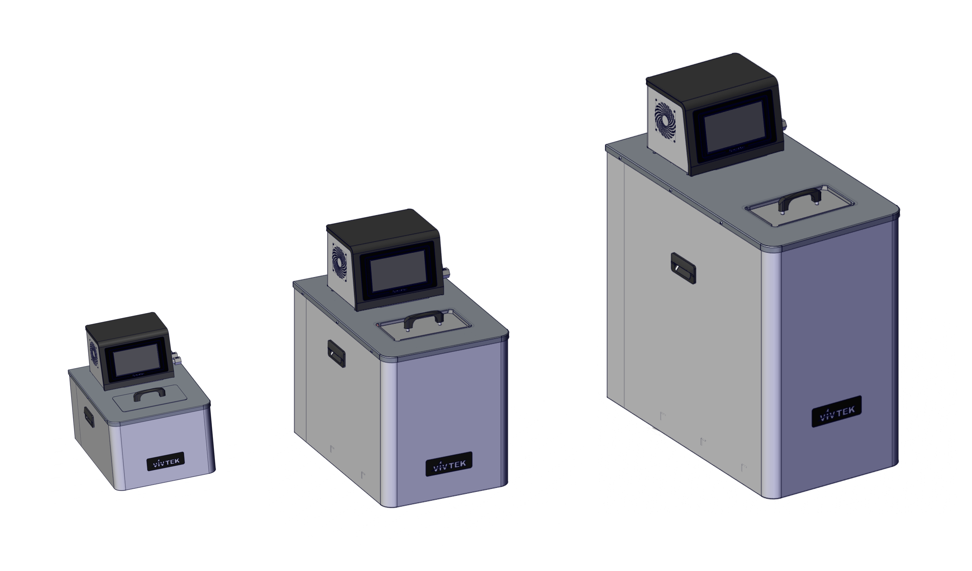

 Model Tank Vol.
Heating AC115/230V Pump
Amp AC115/230V
LBC-H08T200 8L
1200W/1200W 100W/20L/min
10A/5AV
LBC-H16T200 16L
1500W/3000W 100W/20L/min 15A/15A
LBC-H32T200 32L
--- /4000W 160W/35L/min ---/20A
LBC-H64T200 64L
--- /9000W 160W/35L/min ---/50A
