Heated Baths --- Circulator 300 ℃

VivTek InstrumentsSKU: LBC-H08-T300-115V

Model: LBC-H08-T300

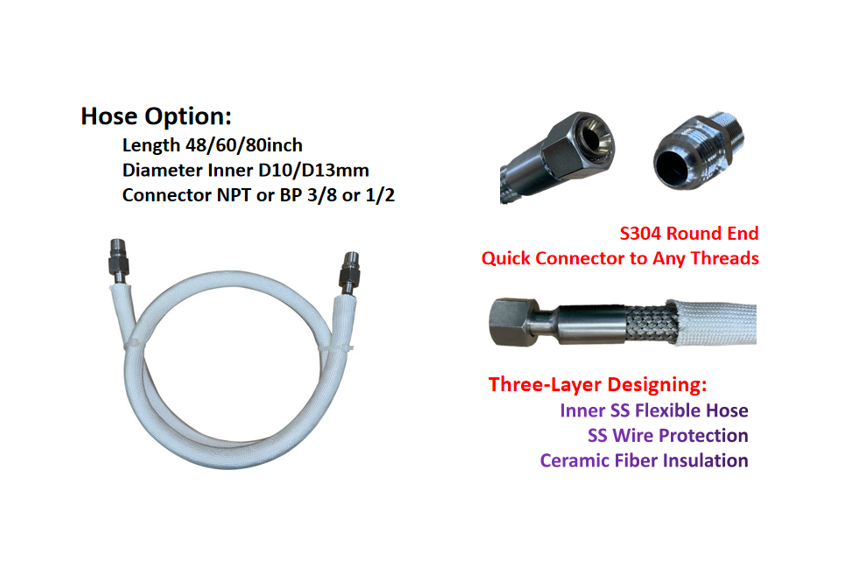

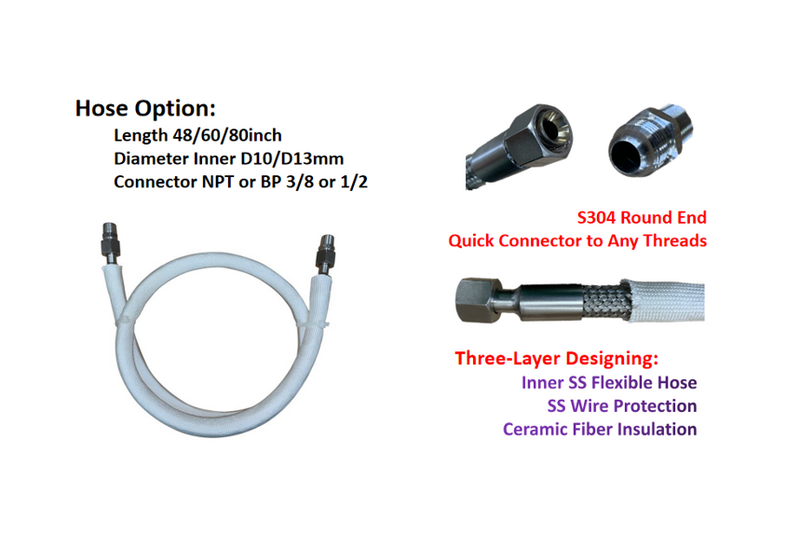

Options: Bath Only (No hose and cooling lid)
Voltage: AC 115V
Sale price$1,975.00


Next generation heated water/oil bath and circulator

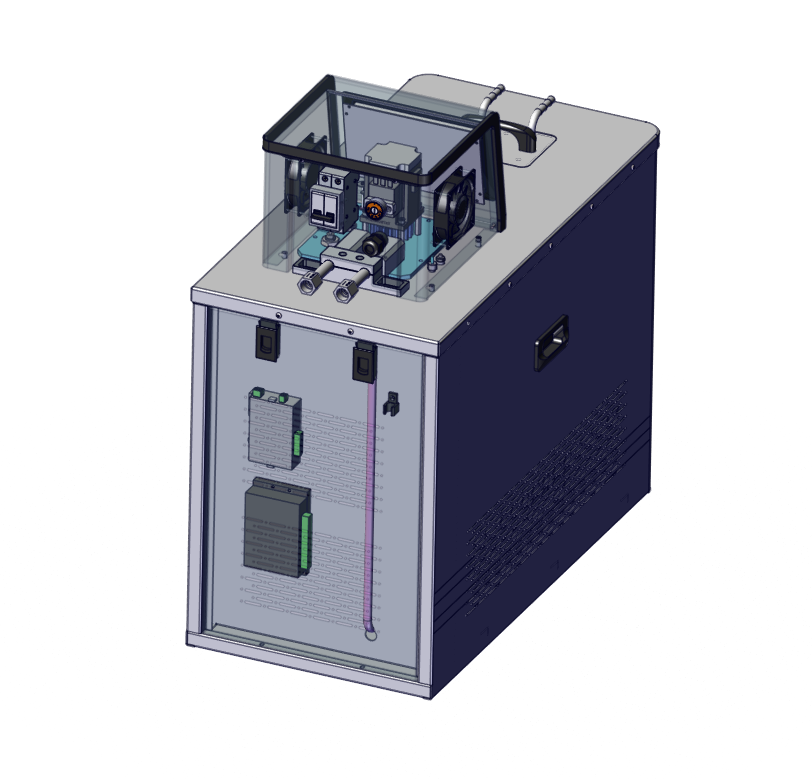

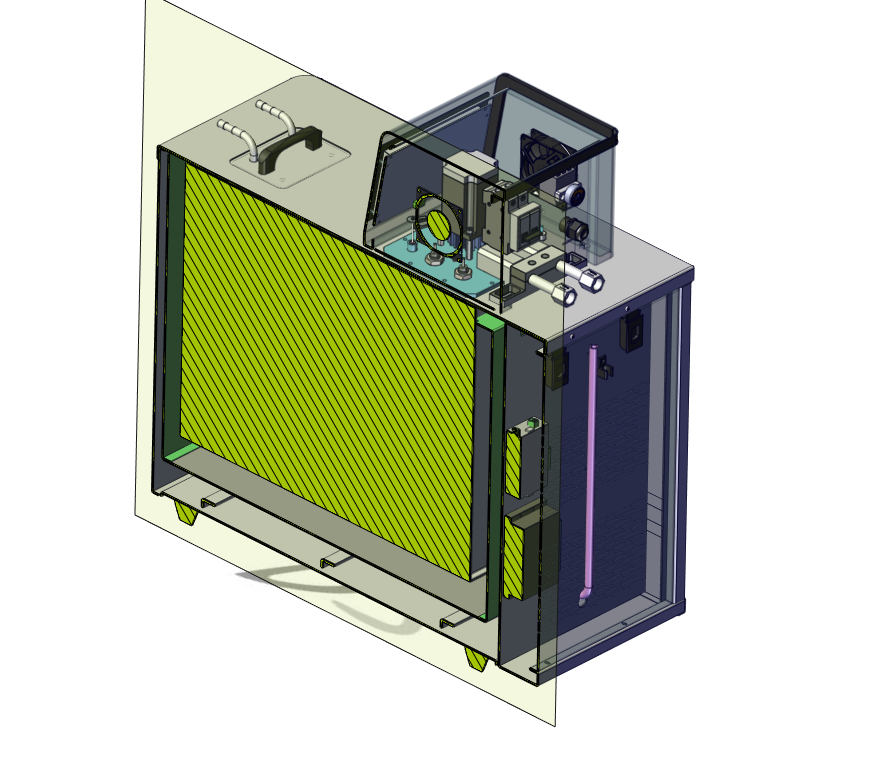

Dual-shell structure for better insulation and higher safety
Very low surface temperature even at >200
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff
External thermostat for extra protection
Maximum temperature 300 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64
Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor
7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use
 Model Tank Vol.
Heating AC115/230V Pump
Amp AC115/230V
LBC-H08T300 8L
1200W/1200W 100W/20L/min
LBC-H16T300 16L
1500W/3000W 100W/20L/min 15A/15A
LBC-H32T300 32L
--- /4000W 160W/35L/min ---/20A
LBC-H64T300 64L
--- /9000W 160W/35L/min ---/50A
