Description

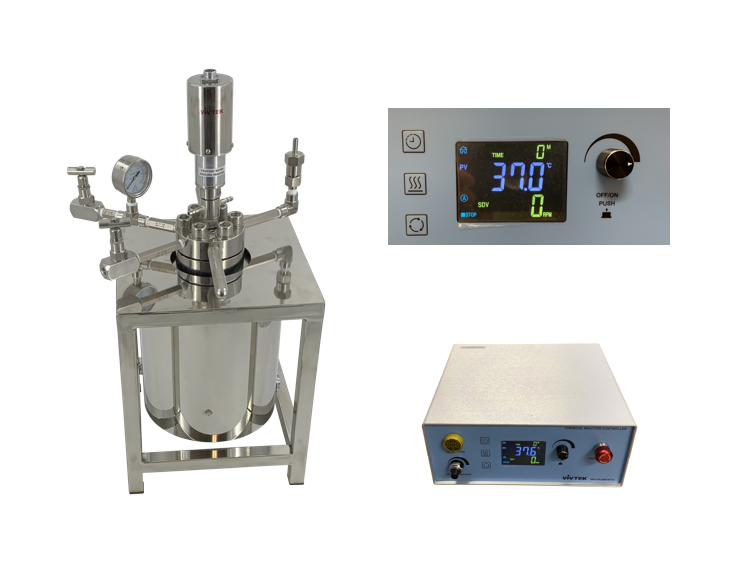

A complete set of high pressure chemical reactor
Stainless steel frame/furnace system with temperature controller
Reactor sealing using flange with PTFE or grafoil gasket
Swagelok needle valve and VivTek fittings installed (pressure gauge)
Gas port and liquid dipping tube port using Swagelok needle valves
Electrical heating furnace built-in
Magnet coupled stirring device with BLDC motor (cooling pump included)
BLDC motor 24V 40W, speed <2000RPM (Limited to use <1200RPM)
Vessel construction SUS316L standard, other materials per quoted
Digital control system with temperature, speed and timing control functions
Applications: chemical synthesis and processing at lab scale
Stirring Speed: <1500RPM
BLDC or AC motor for more power and high torque at low speed range
Stirring paddles or impeller available or as requested
Full glass sets with turn-key solution
Stainless steel frame/furnace system with temperature controller
Reactor sealing using flange with PTFE or grafoil gasket
Swagelok needle valve and VivTek fittings installed (pressure gauge)
Gas port and liquid dipping tube port using Swagelok needle valves
Electrical heating furnace built-in
Magnet coupled stirring device with BLDC motor (cooling pump included)
BLDC motor 24V 40W, speed <2000RPM (Limited to use <1200RPM)
Vessel construction SUS316L standard, other materials per quoted
Digital control system with temperature, speed and timing control functions
Applications: chemical synthesis and processing at lab scale
Stirring Speed: <1500RPM
BLDC or AC motor for more power and high torque at low speed range
Stirring paddles or impeller available or as requested
Full glass sets with turn-key solution
| Model | Volume |
Temp/Pressure | Dimensions | Voltage |
| HiPR-ST50 | 50mL | <400C 20MPa | 35x35x55cm | AC115/230V |
| HiPR-ST100 |
100mL | <400C 20MPa | 35x35x60cm | AC115/230V |
| HiPR-ST250 |
250mL | <400C 20Mpa | 40x40x60cm | AC115/230V |
| HiPR-ST500 |
500mL | <400C 20MPa | 45x45x75cm | AC115/230V |
