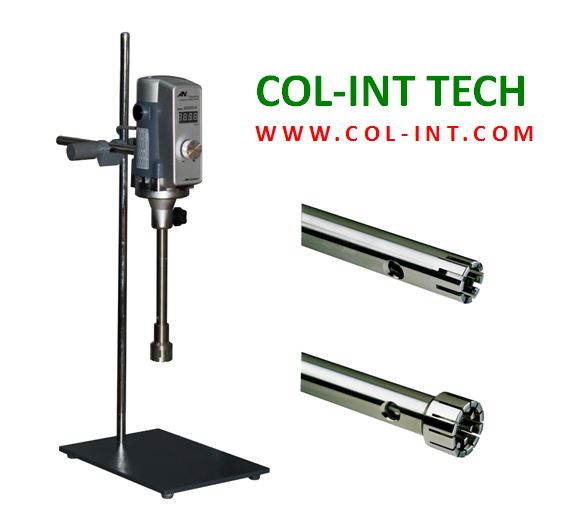

High Shear Mixers --- AD500-SH for Dispersing

VivTek InstrumentsSKU: AD500SH-G12-S100

Main Machine: AD500-SH
High Shear Rotor: G12
Jacketed Vessel: SUS304 100mL
Price:
Sale price$3,750.00

Description

Compact designing with new high-speed motor
High speed and more accurate speed controlling
Power input 850 watts, output 500 watts
Torque 1.78 N.m
Digital timing controller (optional)
Over surge protection
Working dispersing high shear head G12/18/24/30/36
High shear head installed G12, processing capacity 30-800ml volume
    G12 head diameter 12mm, length 188mm, 28-135mm under liquid
    G12 head SS316, max. temperature 120 °C PTFE bearing
    Maximum viscosity 1000 cP
High shear head installed G18, processing capacity 50-1500ml volume
   G18 head diameter 18mm, length 218mm, 30-165mm under liquid
    G18 head SS316, max. temperature 120 °C PTFE bearing
    Maximum viscosity 2000 cP

High shear head installed G24, processing capacity 100-5000ml volume
    G24 head diameter 24mm, length 228mm, 40-175mm under liquid
    G24 head SS316, max. temperature 120 °C PTFE bearing
    Maximum viscosity 5000 cP

High shear head installed G36, processing capacity 250-13000ml volume
    G36 head diameter 36mm, length 238mm, 60-190mm under liquid
    G36 head SS316, max. temperature 120 °C PTFE bearing
    Maximum viscosity 7000 cP

*** Steel frame included
