Description

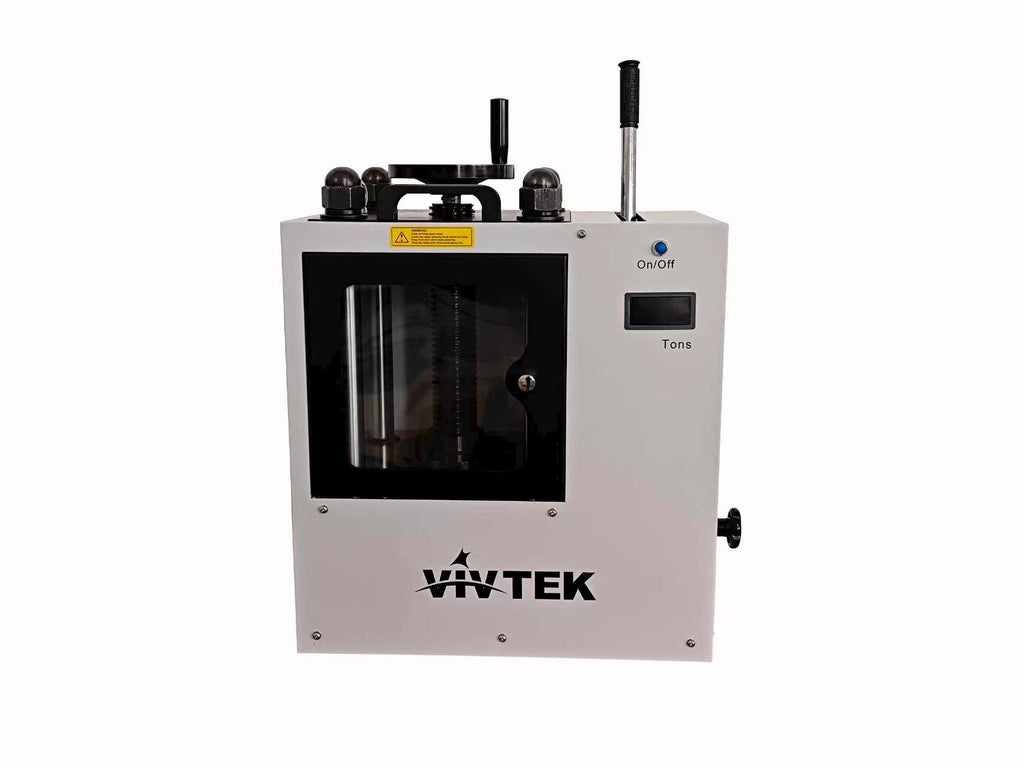

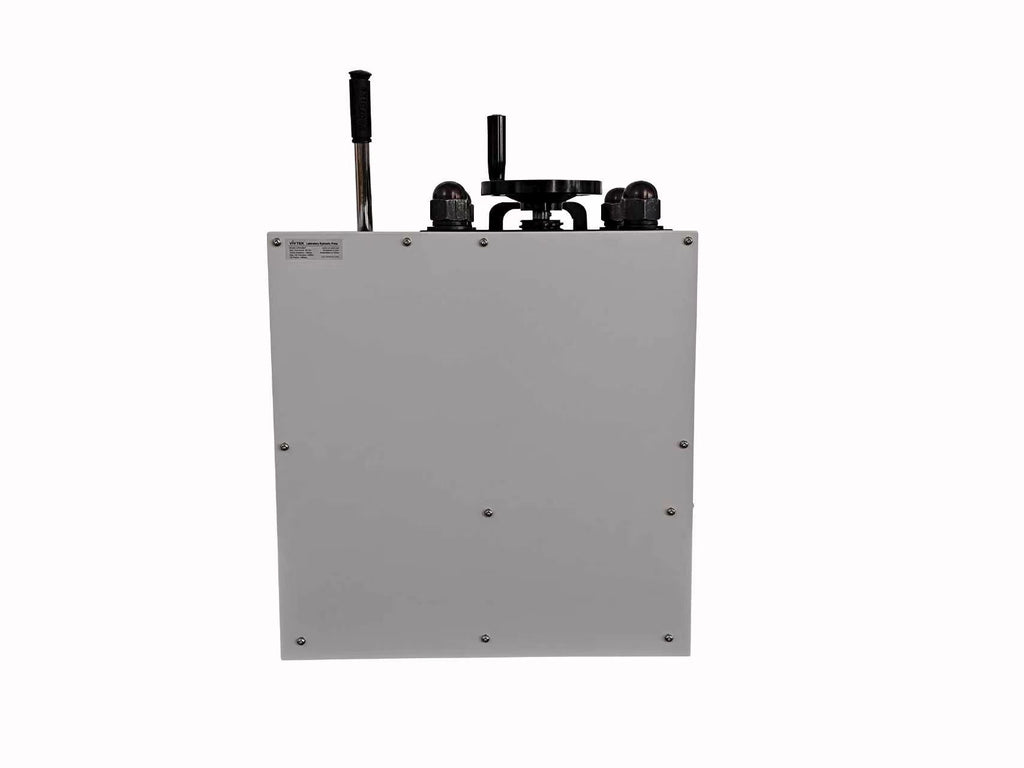

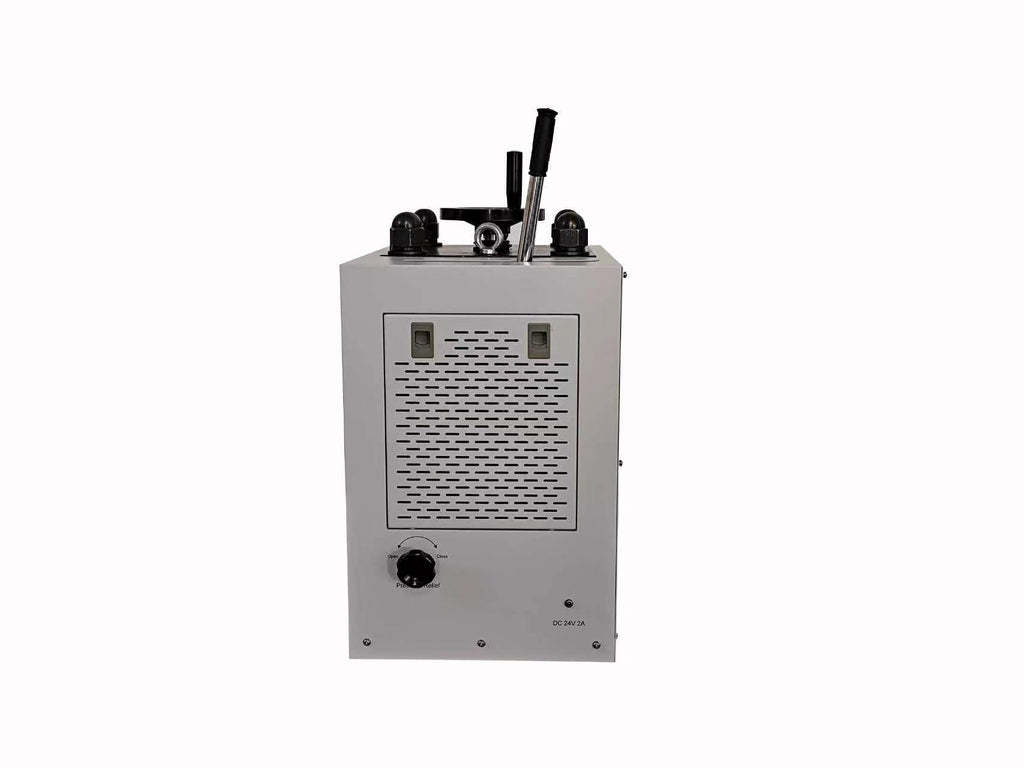

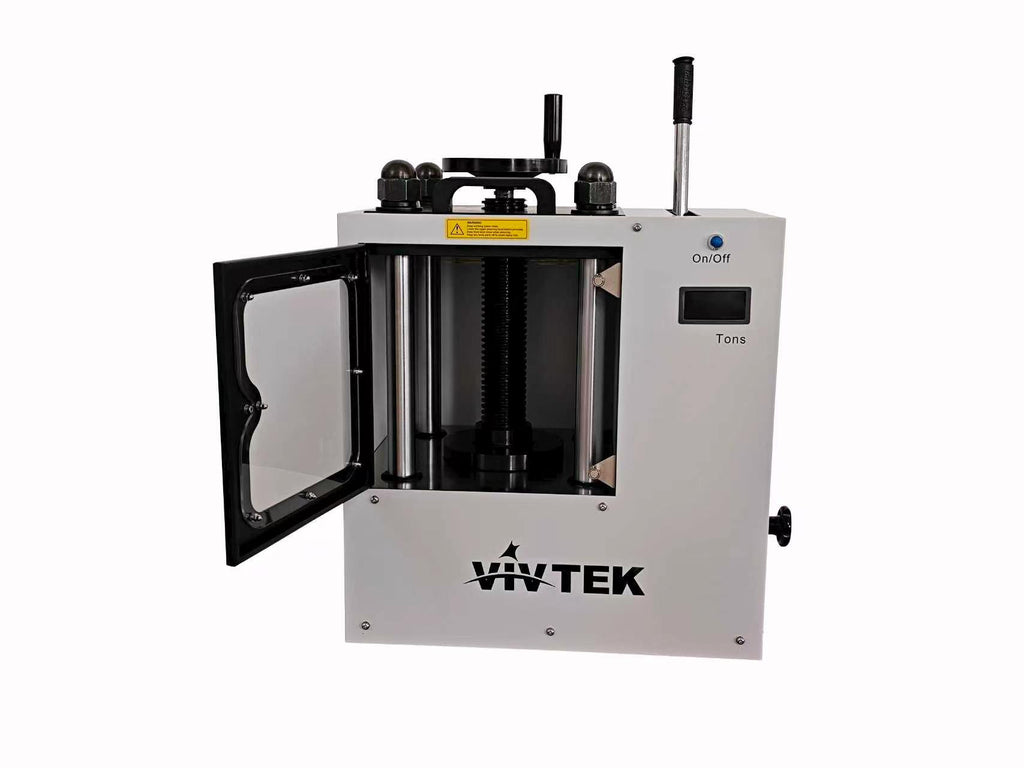

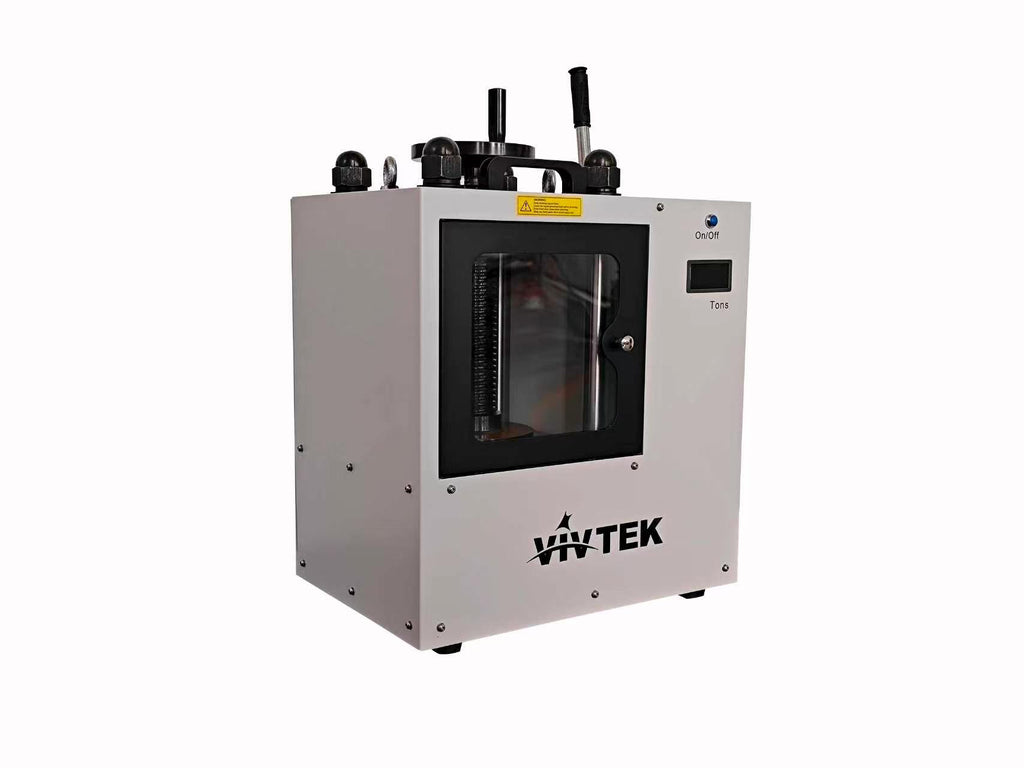

Manual hydraulic pressing machines
Pressure transducer with digital panel meter, calibrated with load cell
Pressing max force from 40tons or 80tons
Top wheel to adjust pressing position and limit travel distance
Travel distance ~40mm
Hydraulic pump pressure <40MPa
Work with 5/10W-20/30 Mobil oil
Built-in safety enclosure for safety requirements
Over pressure warning and alarming
Easy maintenance
One-year limited manufacturer warranty
| Model | Max. Force | Pressure | Stage | Working Space | Weight |
| LPM-M40T | 40 ton | <40MPa | ϕ150mm | 18x18x25cm | 400lbs |
| LPM-M80T | 80 ton | <40MPa | ϕ175mm | 25x25x30cm | 500lbs |
