Parts for Autoclave Reactors HTC230/300

Col-Int TechSKU: HTC230-TC10

Size: 10mL
Parts: PTFE (Teflon) Chamber
Price:
Sale price$100.00

Description

Liner polymer chambers only

Hydrothermal autoclave reactors, also called acid digestion vessels
SUS304 sleeve, easy assembling, loading and unloading

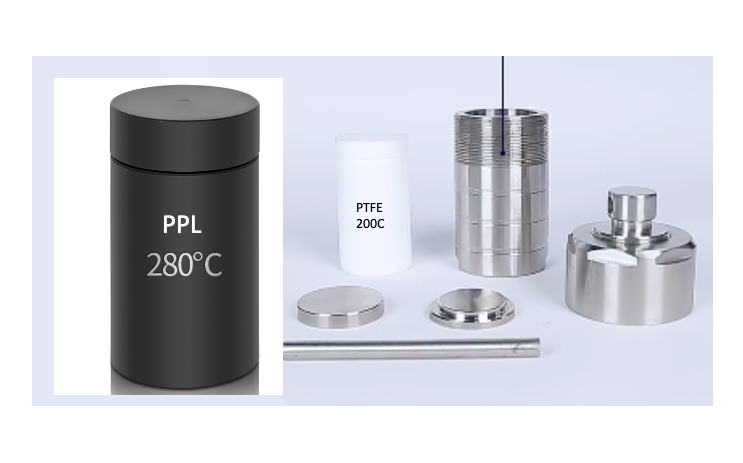

Inner polymer liner chamber PTFE or PPL (modified PTFE)

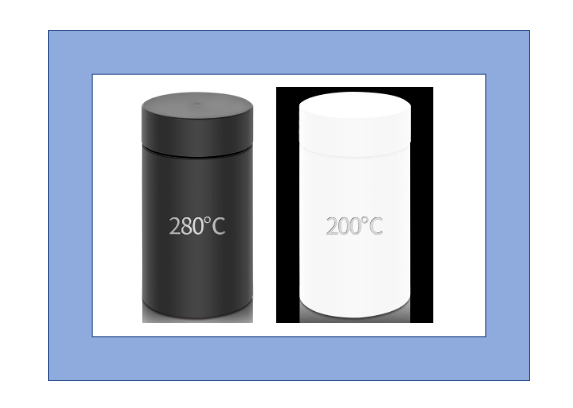

PTFE liner chamber up to 200 °C, 280 °C for PPL chambers
Pressure up to 10MPa (1450psi) at temperature <300 °C
Rupture disc safety device is optional (200°C, 12MPa, SUS316, certified)

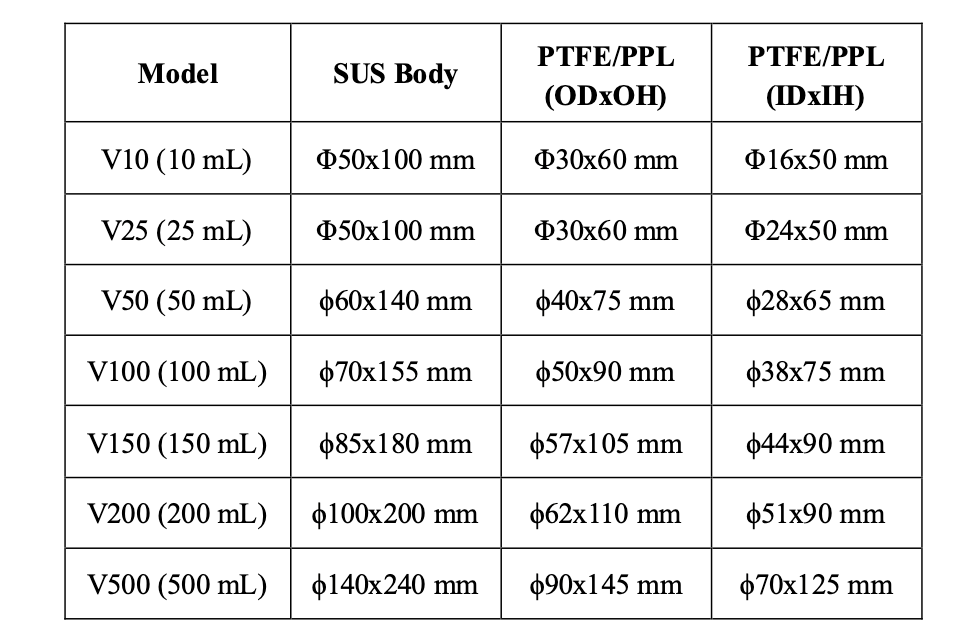

Vessel volumes 10/25/50/100/150/200/500mL

Rupture disc device for over-pressure protection

Certificated rupture disc for pressure release by DUTA
Pressure limit 12.5MPa
Installation ring for 10/25/50/100/200/500mL vessel
