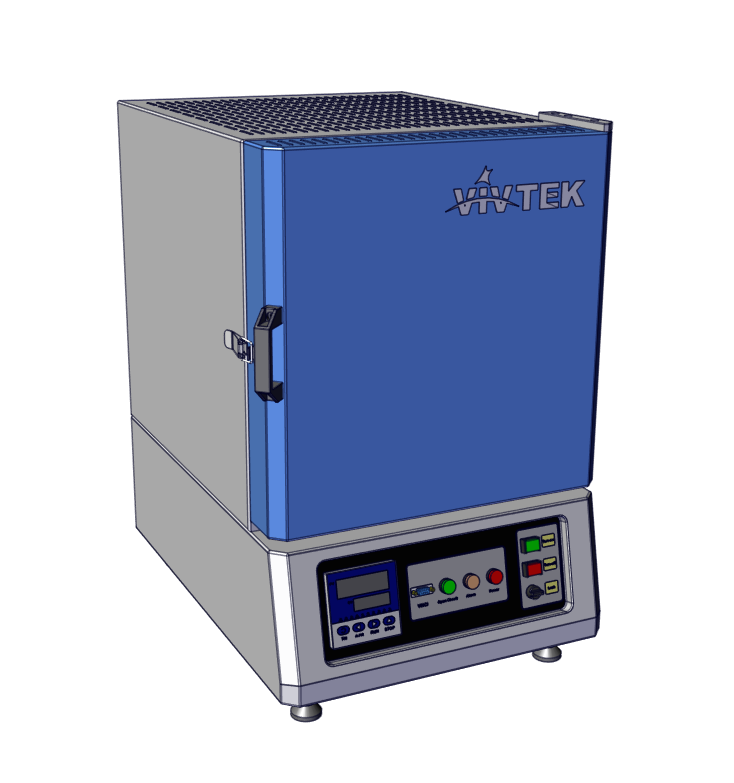

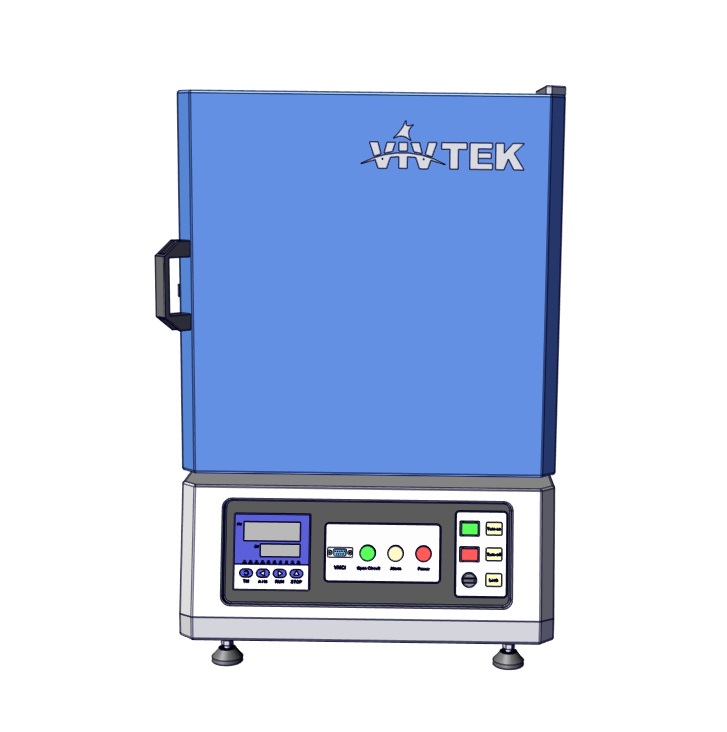

Description
Double-shell steel structure
Air-cooling between the inner and outer chamber walls
Maximum temperature, 1700℃
Continuous working temperature, 1650℃
Temperature is controlled at +/-1℃ with 40-segment programmable controller (PID)
Heating rate, 0-20℃
Auto over-temperature protection
Insulation material refractory alumina (<1800℃)
Built-in heating MoSi2 U-Shape rods, easy to change when needed
Applications: composite research, metals treatment, high temperature fine ceramic research, powder metallurgy, nano-materials
Voltage input AC230V single or three phase as specified or requested
CE Certified (Optional ETL with extra cost)
One year limited manufacturer warranty
MoSi Heating rods are U-shaped and must have right sizes and voltage specifications.
MSU1700 and MUS1800 are for 1700 ℃ and 1800 ℃ grade, respectively.
MSU1800 grade heating rods have longer lifetime (~50% more) if using at high temperature above 1600 ℃,
V04 and V12 models will need 4 pcs heating rods, V36 will be 6 pcs.
Col-Int Tech/VivTek recommends to change all heating rods at one time.
Air-cooling between the inner and outer chamber walls
Maximum temperature, 1700℃
Continuous working temperature, 1650℃
Temperature is controlled at +/-1℃ with 40-segment programmable controller (PID)
Heating rate, 0-20℃
Auto over-temperature protection
Insulation material refractory alumina (<1800℃)
Built-in heating MoSi2 U-Shape rods, easy to change when needed
Applications: composite research, metals treatment, high temperature fine ceramic research, powder metallurgy, nano-materials
Voltage input AC230V single or three phase as specified or requested
CE Certified (Optional ETL with extra cost)
One year limited manufacturer warranty
| Model | Heating Watts | Chamber Volume | Chamber Dimensions | Overall Dimensions |
| MBF1700-V04 | 4000W | 3.6L | 16x15x15cm | 60x65x80cm |
| MBF1700-V12 | 6000W |
12L | 30x20x20cm | 75x90x100cm |
| MBF1700-V36 | 14KW |
36L | 40x30x30cm | 90x95x120cm |
*** Parts Options:
MBF1700 furnaces use 1800C grade B type thermocouple.MoSi Heating rods are U-shaped and must have right sizes and voltage specifications.
MSU1700 and MUS1800 are for 1700 ℃ and 1800 ℃ grade, respectively.
MSU1800 grade heating rods have longer lifetime (~50% more) if using at high temperature above 1600 ℃,
V04 and V12 models will need 4 pcs heating rods, V36 will be 6 pcs.
Col-Int Tech/VivTek recommends to change all heating rods at one time.
