Description
LF-1500 Micro & Nano Bubble Generator
Laboratory micro and nano bubble generator
Compact designing with lab scale capacity
Ideal use for greenhouse, hydroponics, deep water culture, aquaponics and nutrient film technique
Easy connection and robust designing
Wetted material: fpm, EPDM, SUS304, PU
Working temperature 0-75 °C
Tubing size OD/ID=6/2mm
Gas flow control by glass float (analog) mass flow controller
Pressure max 0.8MPa
Pump pressure limit 0.8m (water)
Working water flow rate ~1500mL/min
Micro bubbles Dn (50) 30-40um
Nano bubbles Dn (50) 90-100nm
Overall size 400x330x300mm, weight 20kg/45lbs
Power voltage AC100-240V
UFB-1000 Nano Bubble Generator
Laboratory nano bubble generator
Compact designing with lab scale capacity
Ideal use for greenhouse, hydroponics, deep water culture, aquaponics and nutrient film technique, and science research
Easy connection and robust designing
Wetted material: fpm, EPDM, SUS304, PU
Working temperature 5-45 °C
Tubing size OD/ID=6/2mm
Gas flow control by digital mass flow controller (high precision)
Pressure max 1.0MPa
Pump pressure limit 1.0m (water)
Working water flow rate ~1000mL/min

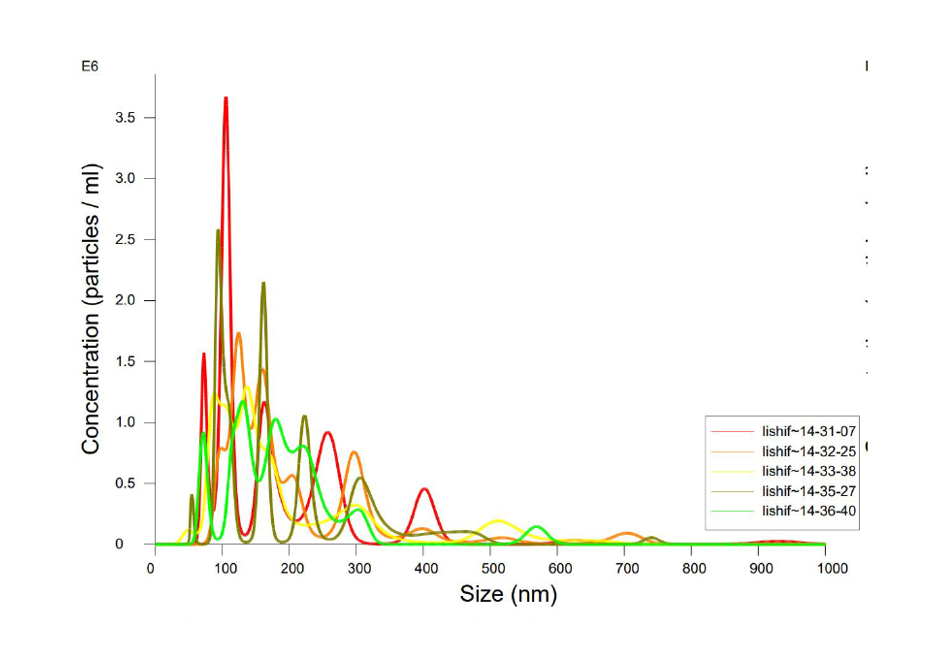

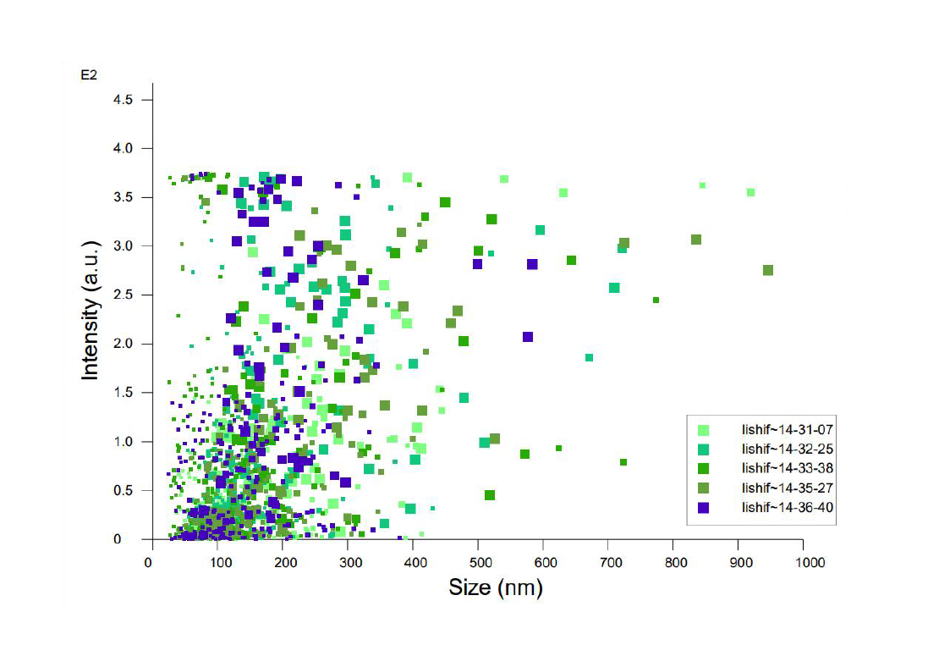

Nano bubbles Dn (50) 50-150nm (Particle tracking analysis by Malvern)
Bubble concentration 0.1-1.0 TP/mL
Overall size 480x360x370mm, weight 20kg/45lbs
Power voltage AC100-240V (DC24V 80W)
CAUTION: delivery time 3-4 weeks
