Spray Dryer --- Lab 1.5kg Water per Hour

VivTek InstrumentsSKU: LSD-H1500F-G

Model: LSD-H1500F-G with Built-in Air Compressor and Glass Set
Price:
Sale price$21,500.00

Description

Full stainless steel structure, surface polished
SUS316 or glass drying chamber and cyclone
Air inlet and exhaust outlet CF76 connector (3 inch)
Built-in air filter for dust removal
Advanced temperature control system using Siemens PLC and Delta module
7-inch Siemens HMI touch screen for easy operation
Powerful fan blower controlled by VFD
Electrical heating of accurate temperature control and fast acting
Voltage input AC208-230V single phase, 20A

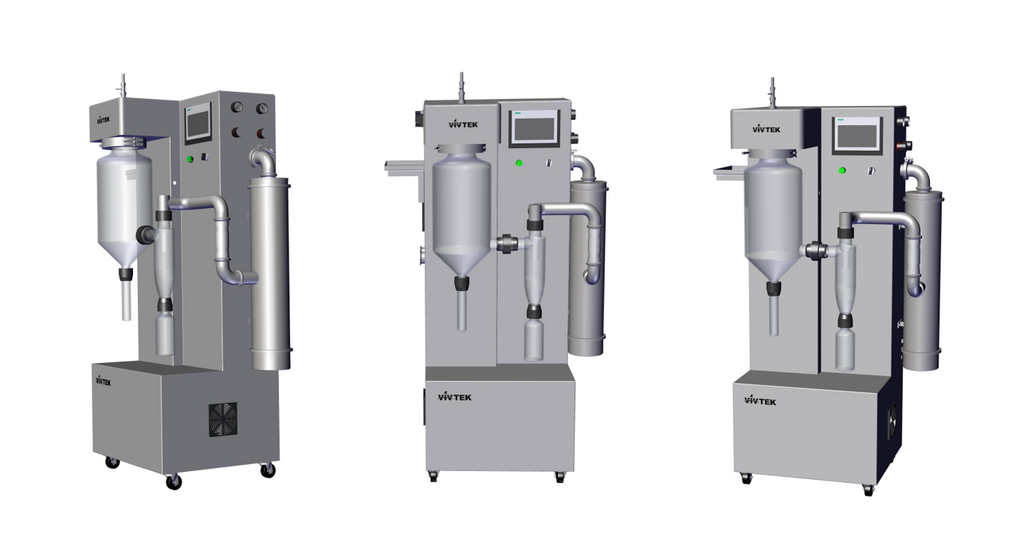

LSD-H1500F Floor stand laboratory spray drying machine

Evaporation rate of water: 1500ml/hour
Air inlet temperature range: 120℃ -280℃
Air outlet temperature range: 80℃ -120℃
Temperature precision: ± 1℃
Heating capacity: 3kw, 220V, single Phase
Blower: 0.75kw; 330m3/hr; maximum pressure,686Pa
Built-in Compressor: 0.25KW; Up to 4.2M3/hr
Spray system: 2 fluid co-current nozzles with standard 0.75mm jet
Dimensions: 700 x 505 x 1500 ( mm ) L x W x H
Weight: 150kg/320lbs

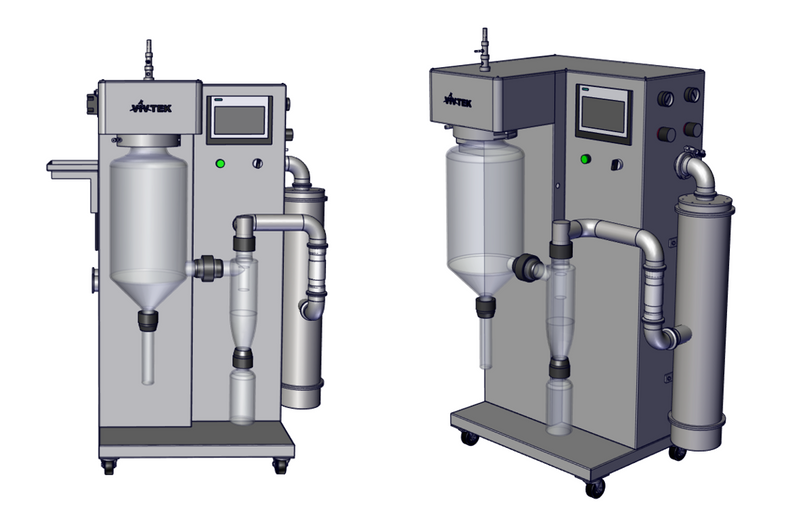

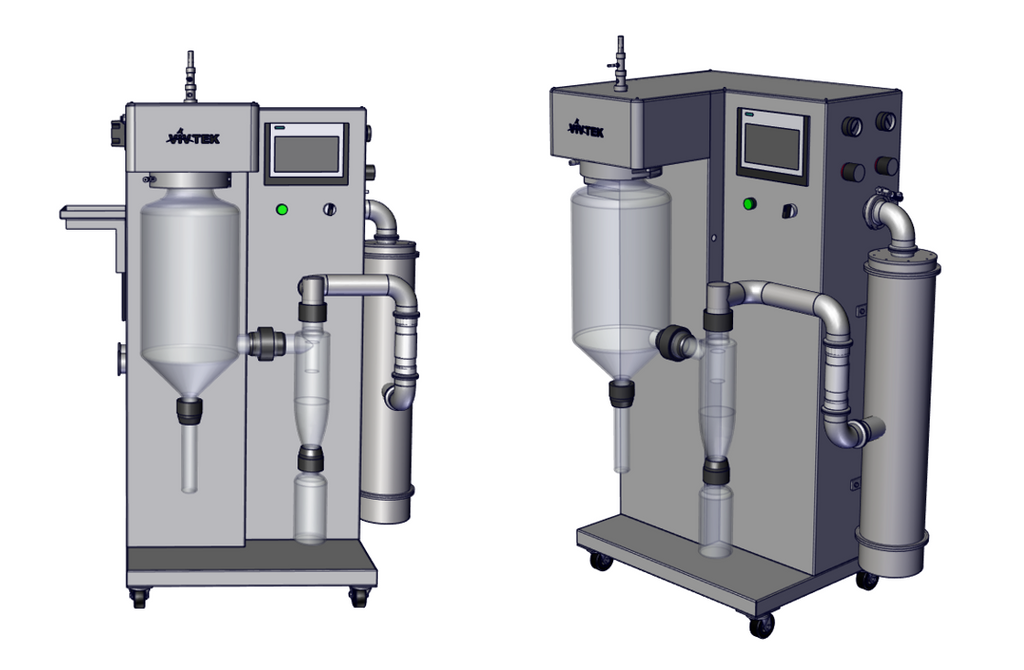

LSD-H1500T Bench top laboratory spray drying machine

Evaporation rate of water: 1500ml/hour
Air inlet temperature range: 120℃ -280℃
Air outlet temperature range: 80℃ -120℃
Temperature precision: ± 1℃
Heating capacity: 3kw, 220V, single Phase
Blower: 0.75kw; 330m3/hr; maximum pressure,686Pa
Optional Compressor: 0.25KW; Up to 4.2M3/hr
Spray system: 2 fluid co-current nozzles with standard 0.75mm jet
Dimensions: 700 x 505 x 1100 ( mm ) L x W x H
Weight: 120kg/250lbs
