Stirred High-P Reactor 1-10L

VivTek InstrumentsSKU: HiPR-SF1000

Size: 1000mL HiP Reactor
Price:
Sale price$9,750.00

Description

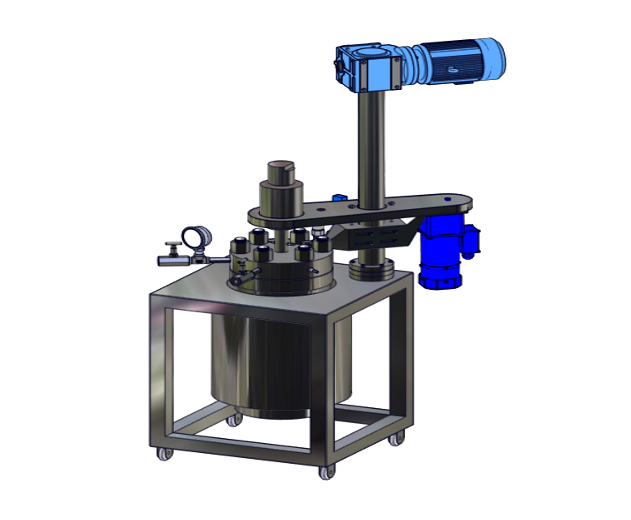

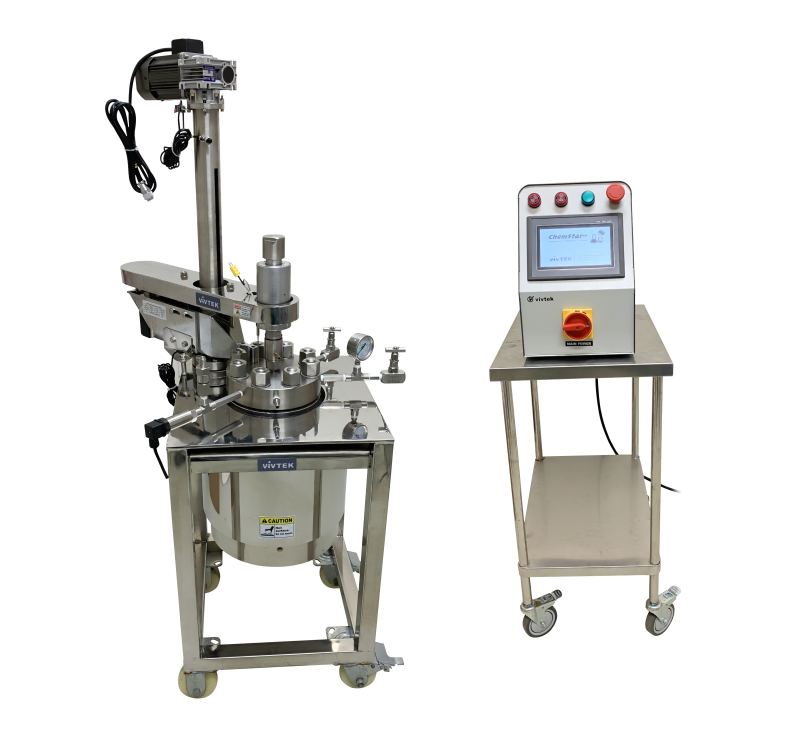

A complete set of high pressure chemical reactor
Stainless steel frame/furnace system with temperature controller
Reactor sealing using flange with PTFE or grafoil gasket
Swagelok needle valve and VivTek fittings installed (pressure gauge)

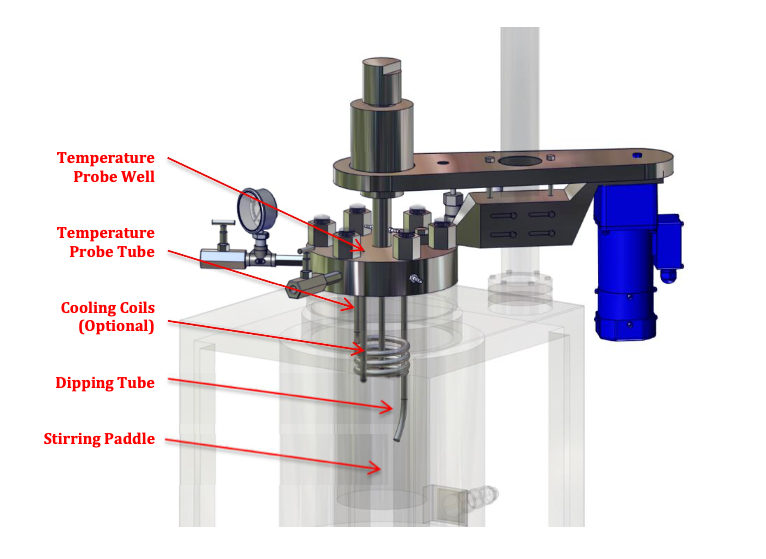

Gas port and liquid dipping tube port using Swagelok needle valves
Electrical heating furnace built-in

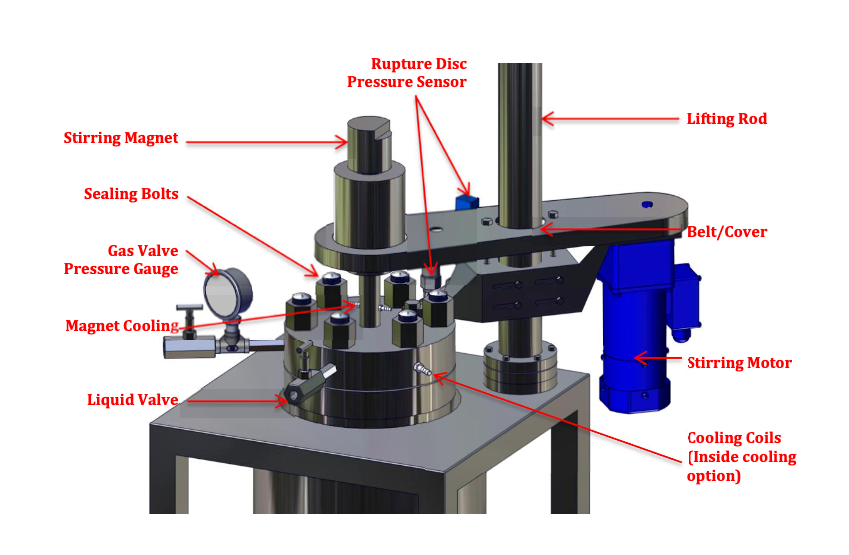

Magnet coupled stirring device with cooling jacket (Circulation pump included)
Motor AC220V 3P 200W, 2800RPM (stirring speed 50-1200RPM)
Vessel construction SUS316L standard, other materials per quoted

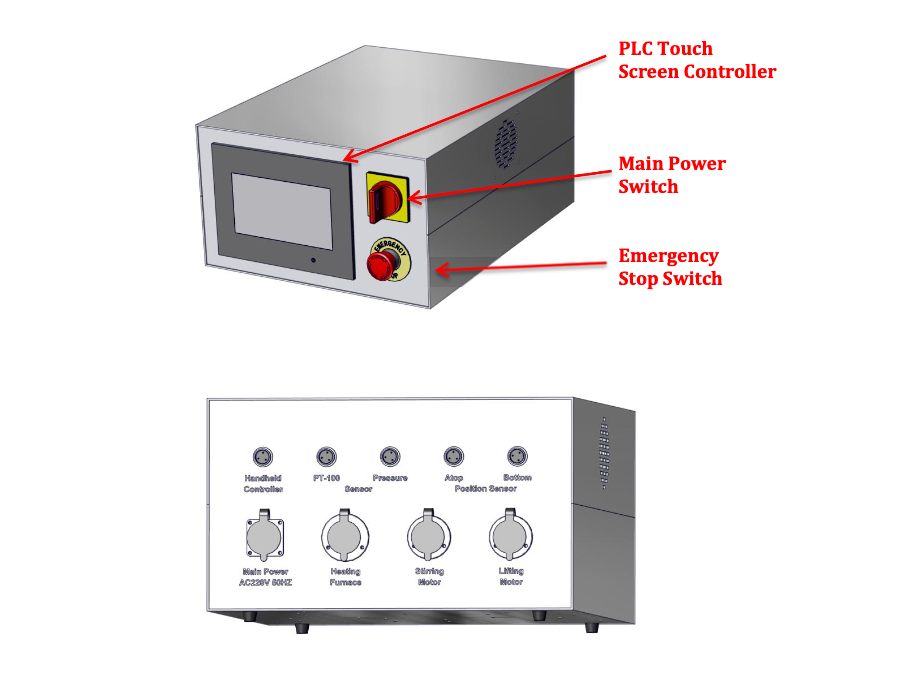

Digital control system with temperature, speed and timing control functions
Powered lifting device with hand controller
Stirring Speed: <1200RPM
Stirring paddles or impeller available or as requested
Temperature <350
Pressure <20Mpa/2900psi

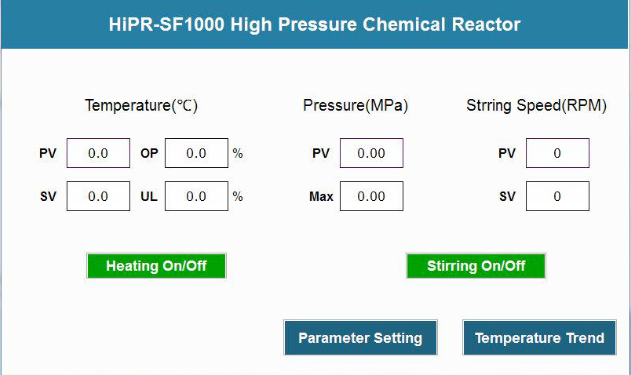

7-inch touch screen PLC/HMI controller with remote control (EasyAccess 2.0)
 Model Volume
Pressure Dimensions Voltage
HiPR-SF1L
1000mL <20MPa 55x60x150cm AC230V
HiPR-SF2L
2000mL <20Mpa 55x60x150cm AC230V
HiPR-SF5L
5000mL <20MPa 60x75x175cm AC230V
HiPR-SF10L 10L <20MPa 75x80x175cm AC230V
