Description

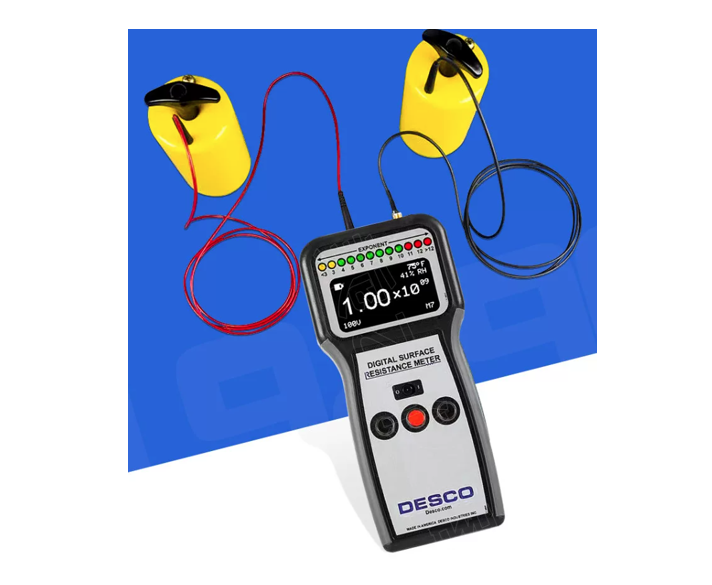

SRM-19290 Surface Resistance Meter is an instrument designed to measure resistance point-to-point (Rtt) or surface to ground (Rtg) in accordance with ESD Association Standard ANSI/ESD S4.1. Ideal for measuring worksurfaces, flooring systems, garments, packaging and other materials. This unit also measures ambient temperature and relative humidity.
Key Features and Advantages
Resistance range 1: 1 x 103 to 1 x 106 ohms @ 10 Volts, complies with ANSI/ ESD S4.1
Resistance range 2: 1 x 106 to 1 x 1012 ohms @ 100 Volts, complies with ANSI/ESD S4.1
Accuracy: ±10% (±20% accuracy for 5 x 103 ohms and lower and 1 x 1012 ohms and greater), complies with ANSI/ESD S4.1. Under load voltages of 10 Volts ±5% and 100 Volts ±5% exceeds requirements of ANSI/ESD S4.1
Power supply: 4xAA batteries, battery life about 1500 measurements
Display: OLED 2.7inch 128x64 pixel resolution
Memory for data storage: 100 measurements
Environment requirements: Indoor use only at altitudes less than 6500 ft. (2 km), Maximum relative humidity of 80% up to 85°F (30°C)
Dimensions 4.0x8.3x1.3 inch, weight 400grams
Warranty: 12-month limited warranty
