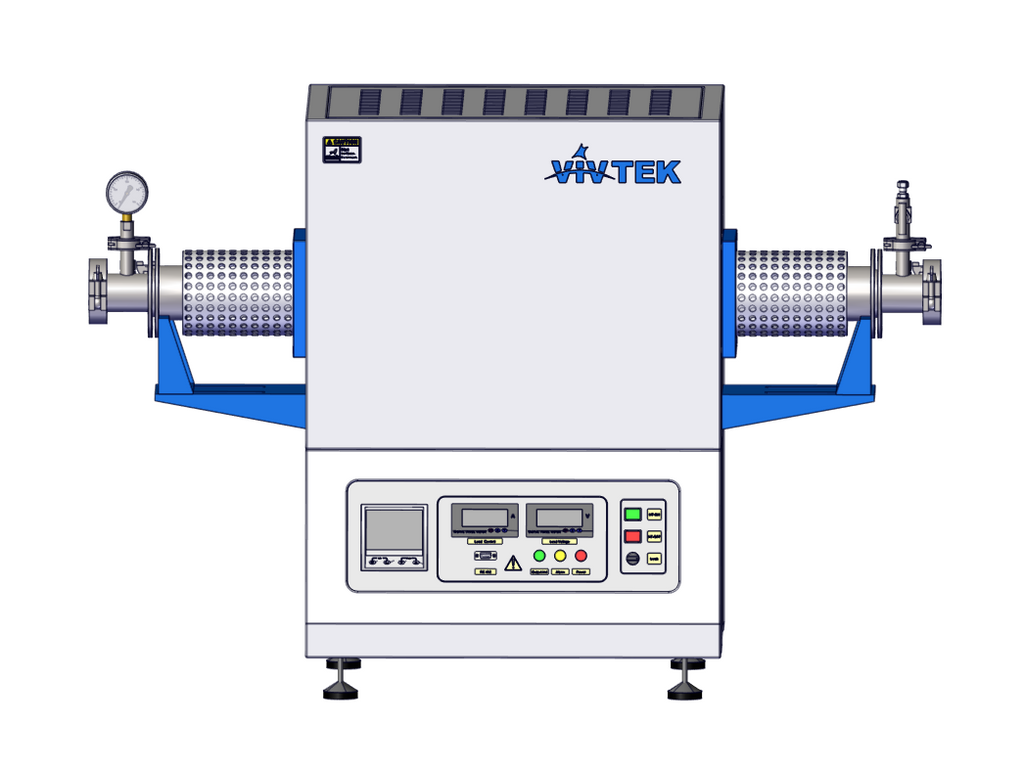

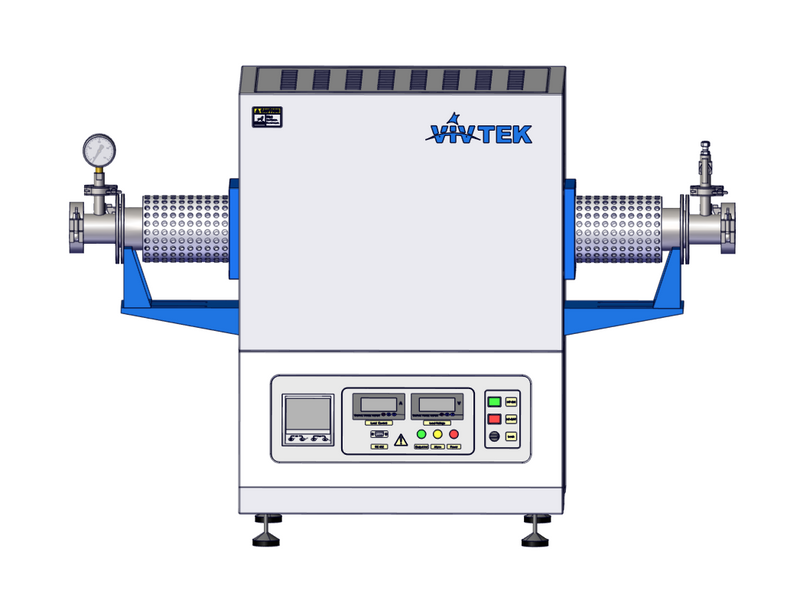

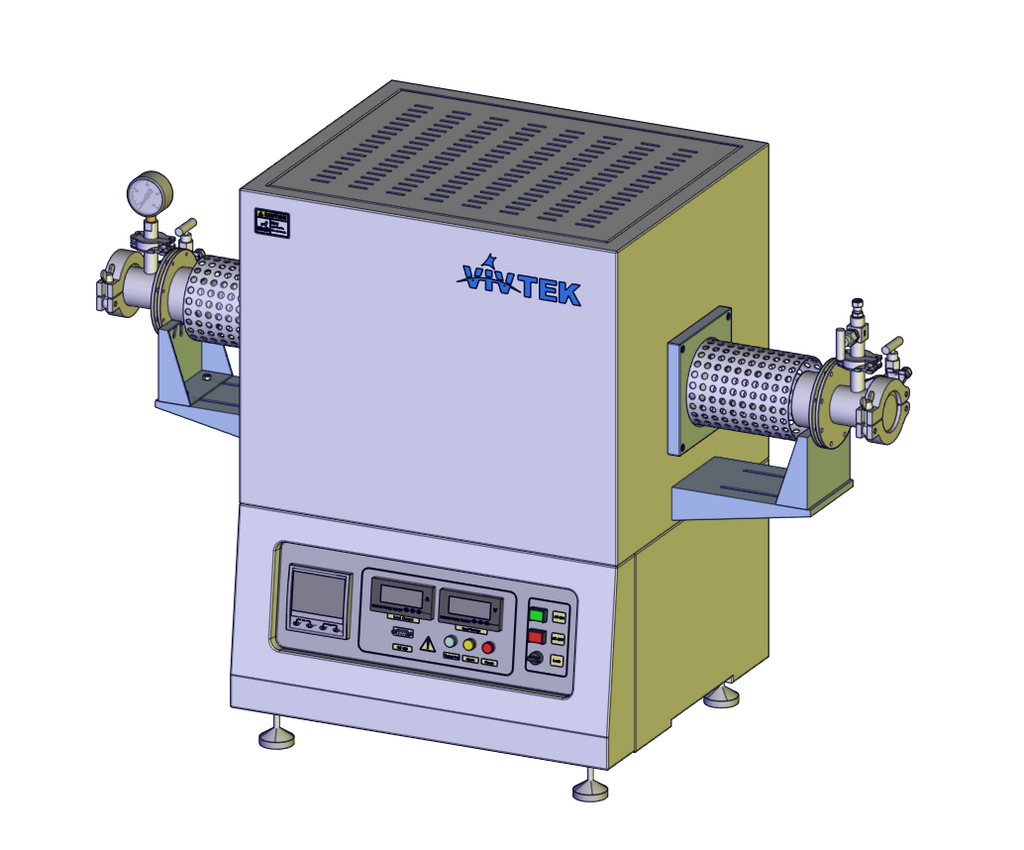

Tube Furnaces --- 1400°C D60/80/100 Horizontal Position

VivTek InstrumentsSKU: VTF1400-D60

Volume/Voltage: VTF1400-D60 AC230V
Option: Furnace with Flange and Tube
Price:
Sale price$7,250.00

Description

Double-shell steel structure
Air-cooling between the inner and outer chamber walls
Maximum temperature, 1400℃
Continuous working temperature, 1350℃
Temperature is controlled at +/-1℃ with 40-segment programmable controller (PID)
Heating rate, 0-20℃
Auto over-temperature protection
Insulation material refractory alumina (<1600℃)

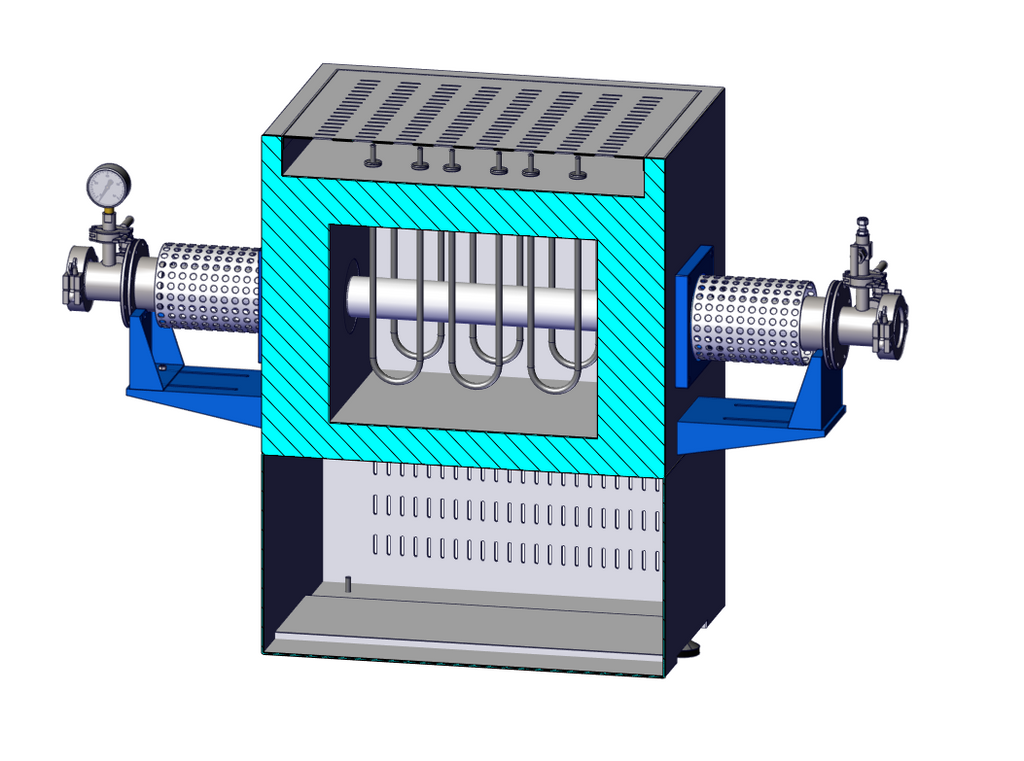

Built-in heating SiC U-Shape rods, easy to change when needed
Tube materials: quartz or alumina
Tube size: Diameter 60/80/100mm, length=1000mm

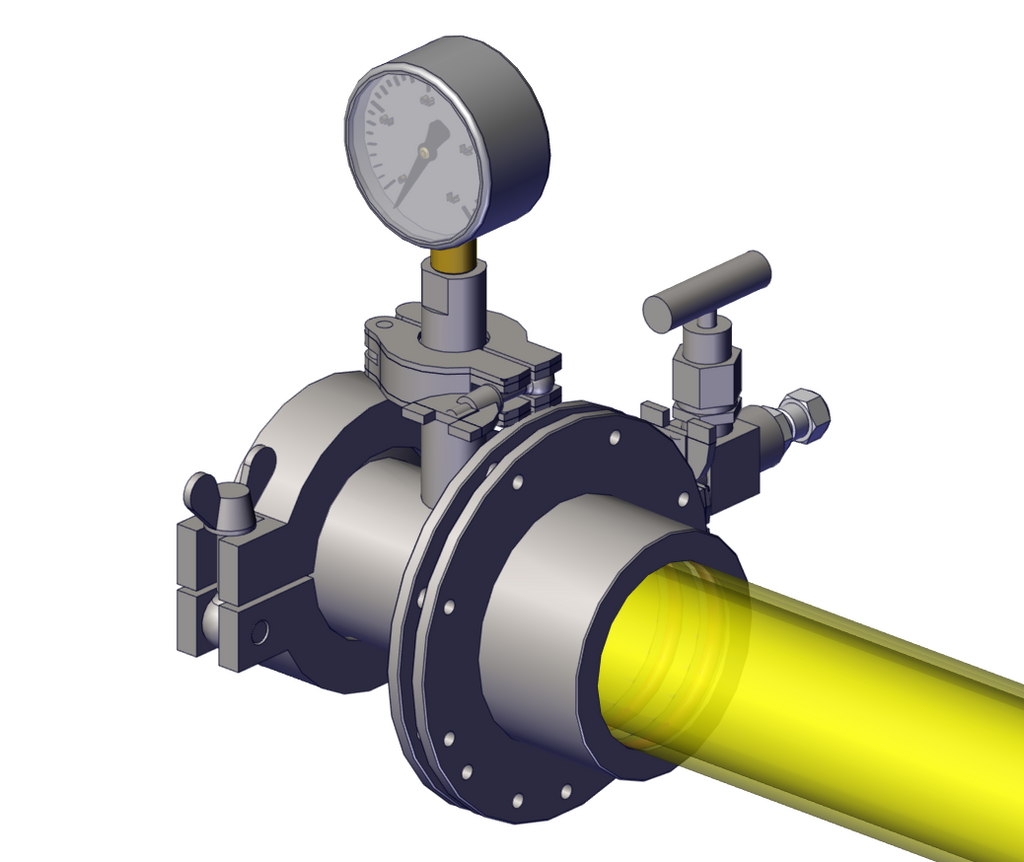

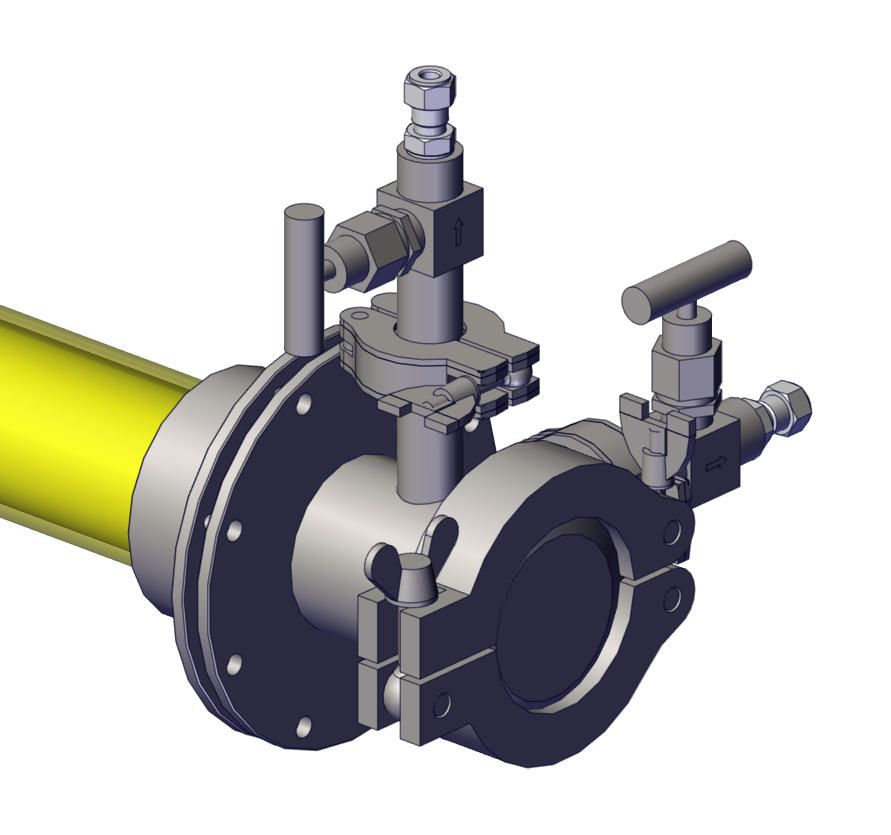

Vacuum sealing flanges for two ends with fittings installed

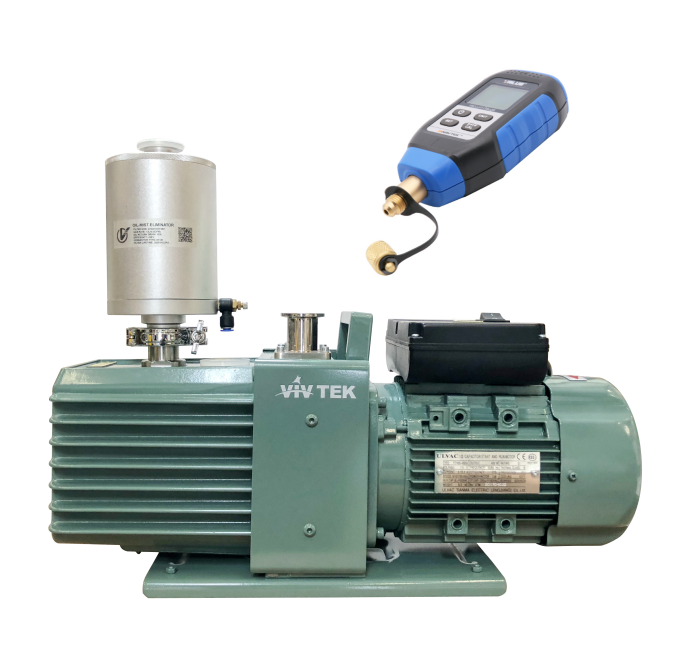

Vacuum pump optional 0.5Pa rotary vane vacuum pump 4.5cfm
Ideal for both applications under vacuum or with inert gas protection
Applications: composite research, metals treatment, high temperature fine ceramic research, powder metallurgy, nano-materials
Voltage input AC230V single or three phase as specified or requested
CE Certified (Optional ETL with extra cost)
One year limited manufacturer warranty
 Model Heating Watts Tube Size (mm)
Constant Temp Zone
Overall Dimensions
VTF1400H-D60 6000W
D60/L1000 150mm/6inch
75x90x100cm
VTF1400H-D80 6000W
D80/L1000 150mm/6inch
90x95x120cm
VTF1400H-D100 8000W D100/L1000 150mm/6inch
100x110x140cm
